- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DF60-4P-10.16DSA(27)
- Part Number DF60-4P-10.16DSA(27)
- Manufacturer Hirose
- Pin Count 8
- Part Category Connector
- Package Category Other

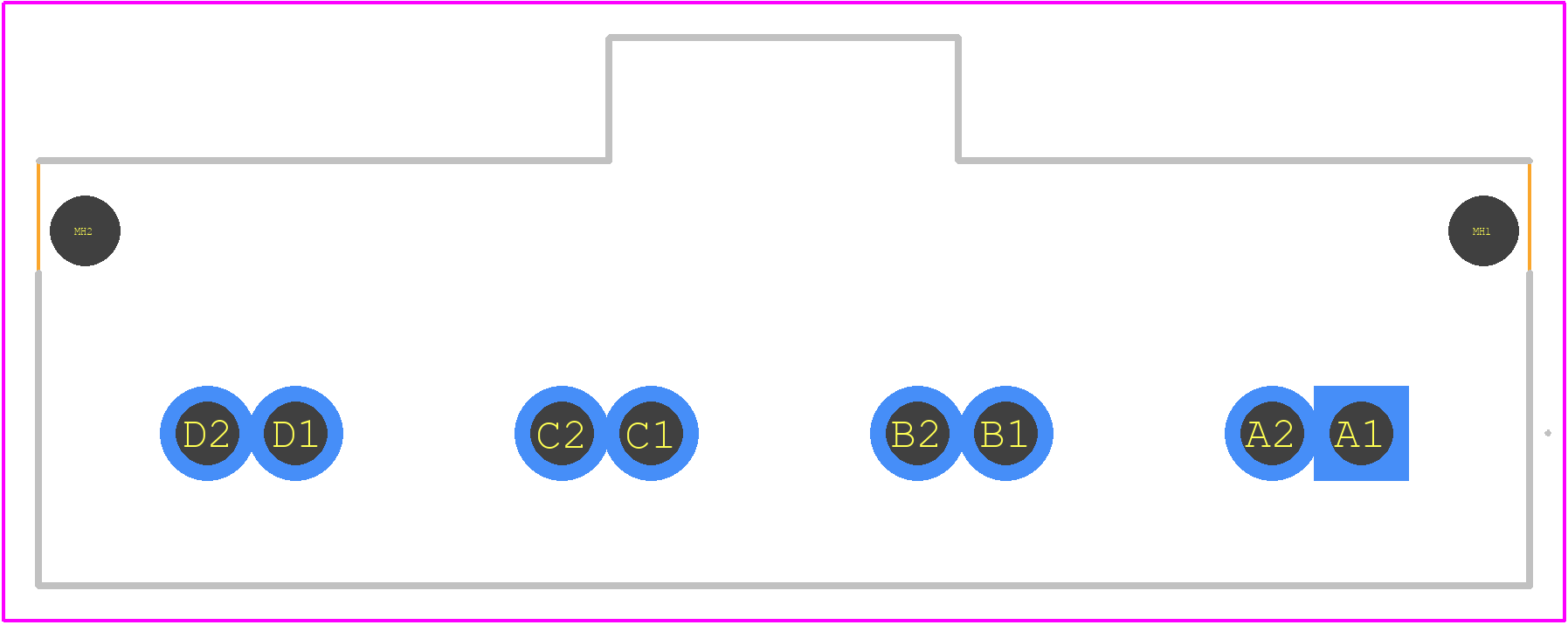

- Footprint Name Other - DF60-4P-10.16DSA(27)-1
- Released Date Sep 13, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF60-4P-10.16DSA(27) Details
-
Manufacturer Part Number:
DF60-4P-10.16DSA(27)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
RECTANGULAR POWER CONNECTOR
DF60-4P-10.16DSA(27) Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the connector.
-
Yes, the DF60-4P-10.16DSA(27) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration applications.
-
The maximum operating temperature range for the DF60-4P-10.16DSA(27) connector is -40°C to 105°C.
-
Yes, the DF60-4P-10.16DSA(27) connector is compatible with lead-free soldering and meets the requirements of the RoHS directive.
-
The recommended torque for the DF60-4P-10.16DSA(27) connector is 0.5 N·m to 1.5 N·m.
Trust Checks
Community Provided
System Verified
Community Approved
DF60-4P-10.16DSA(27) Overview
Use the download button to access the DF60-4P-10.16DSA(27) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF60-,
or try a keyword search, such as Power Connectors
