The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the DF60-6P-10.16DS(27) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
The maximum cable diameter that can be used with the DF60-6P-10.16DS(27) connector is 1.5mm.
Yes, the DF60-6P-10.16DS(27) connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination machines.
The operating temperature range for the DF60-6P-10.16DS(27) connector is -40°C to +105°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF60-6P-10.16DS(27) Overview

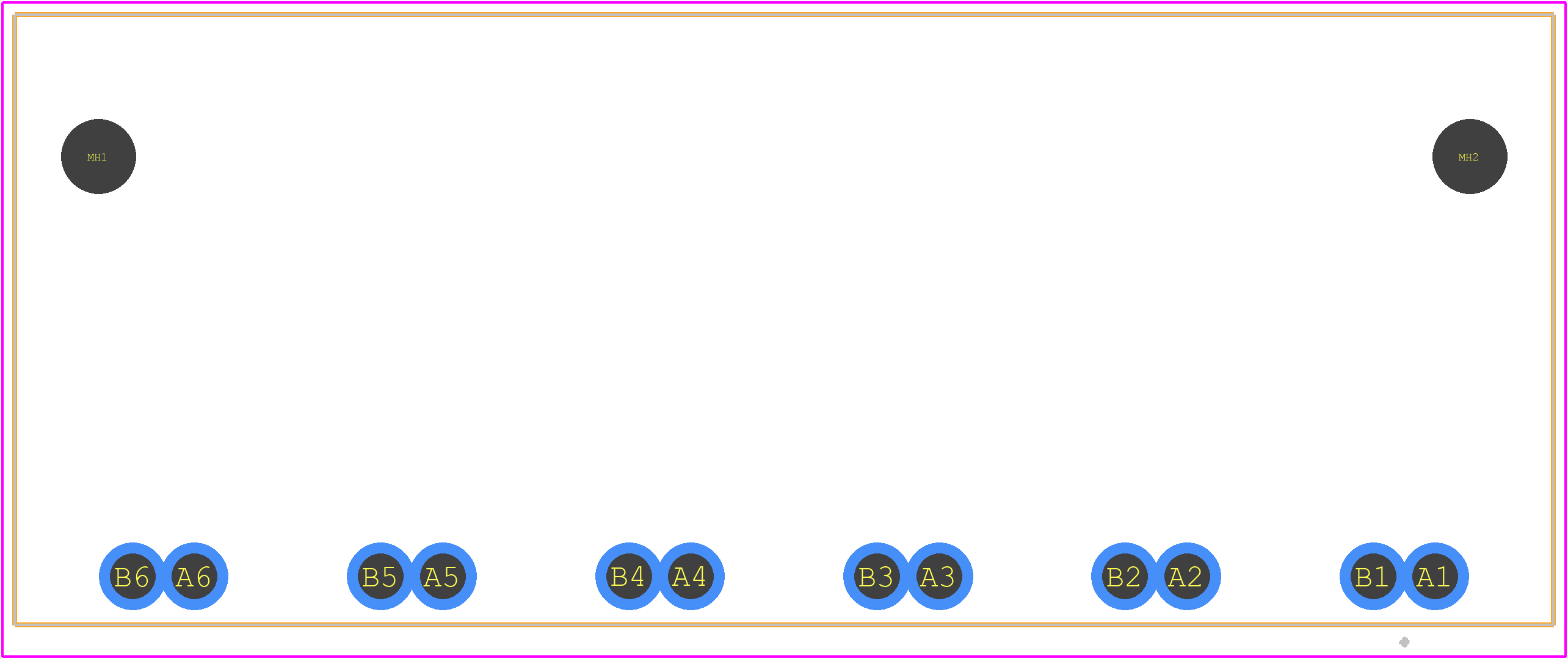

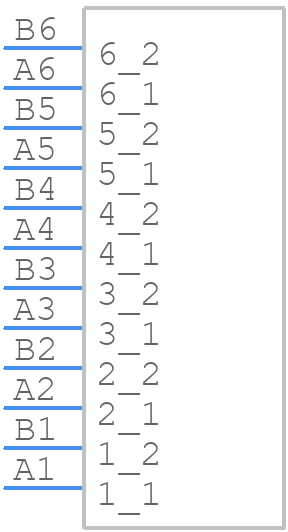

Use the download button to access the DF60-6P-10.16DS(27) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF60-,
or try a keyword search, such as Power Connectors
