- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DF62-13P-2.2DS
- Part Number DF62-13P-2.2DS
- Manufacturer Hirose
- Pin Count 14
- Part Category Connector
- Package Category Other

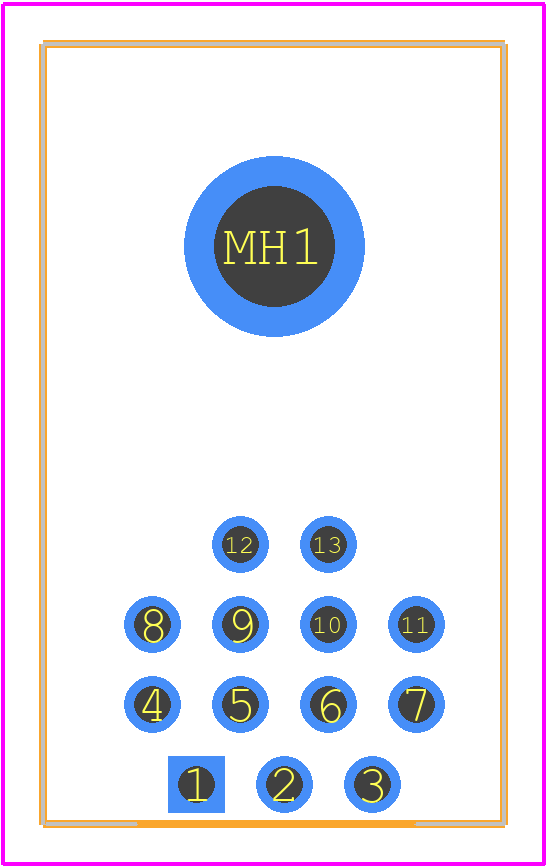

- Footprint Name Other - DF62-13P-2.2DS-2
- Released Date Oct 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF62-13P-2.2DS Details
-
Manufacturer Part Number:
DF62-13P-2.2DS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
COMBINATION LINE CONNECTOR
DF62-13P-2.2DS Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to insert the plug into the receptacle while aligning the keyway, then rotate the plug clockwise to secure it. This ensures proper connection and prevents damage to the contacts.
-
Yes, the DF62-13P-2.2DS connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
-
The maximum operating temperature range for the DF62-13P-2.2DS connector is -40°C to 105°C, making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.
-
Yes, the DF62-13P-2.2DS connector is compatible with lead-free soldering processes, making it suitable for use in applications that require RoHS compliance.
-
The typical contact resistance of the DF62-13P-2.2DS connector is 10 mΩ or less, ensuring reliable and efficient signal transmission.
Trust Checks
Expert Contribution
System Verified
Community Approved
DF62-13P-2.2DS Overview
Use the download button to access the DF62-13P-2.2DS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF62-,
or try a keyword search, such as Combination Line Connectors
