DF70845AD80FPV - Renesas Electronics

Description: The SH708x provide large-capacity, high-speed on-chip flash memory capable of constant single cycle access at 80Mhz.

Download DF70845AD80FPV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

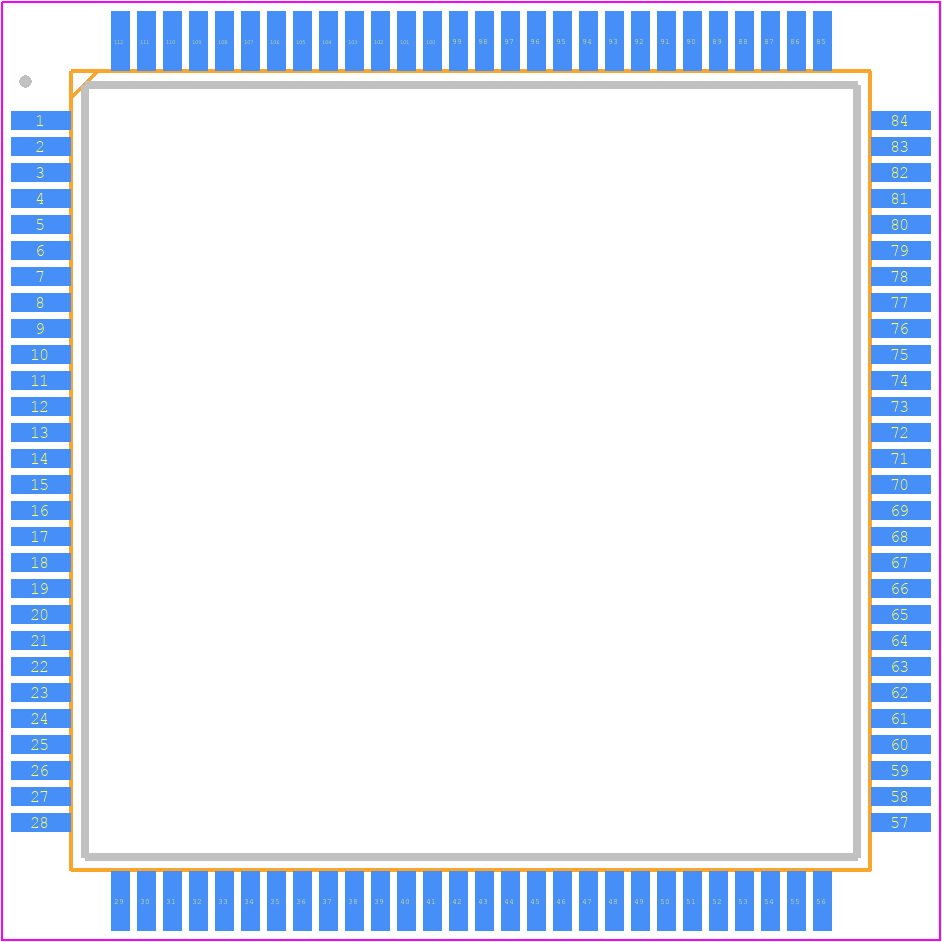

DF70845AD80FPV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0112JA-A
click to zoom
3D Models
DF70845AD80FPV - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0112JA-A
click to zoom

DF70845AD80FPV Details

  • Manufacturer Part Number:

    DF70845AD80FPV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    20 X 20 MM, 1.70 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, PLASTIC, LQFP-112

  • Pin Count:

    112

  • Manufacturer Package Code:

    PLQP0112JA

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AS 4.5 TO 5.5 V SUPPLY

  • Address Bus Width:

    30

  • Bit Size:

    32

  • Clock Frequency-Max:

    12.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PQFP-G112

  • Length:

    20 mm

  • Number of I/O Lines:

    84

  • Number of Terminals:

    112

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

DF70845AD80FPV Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • During reset, the JTAG interface should be tri-stated to prevent unwanted data from being shifted into the device. This can be achieved by pulling the TMS pin high and the TCK pin low.
  • The maximum allowed capacitance on the VCC pin is 10uF. Exceeding this value may cause voltage droop and affect the device's operation.
  • The DF70845AD80FPV has a built-in watchdog timer that can be enabled by setting the WDTEN bit in the SYSCR register. The watchdog timer can be configured to reset the device or generate an interrupt upon timeout.
  • The minimum clock frequency required for the DF70845AD80FPV is 32 kHz. However, the device can operate at frequencies as low as 1 kHz in low-power modes.
