DF9B-13P-1V(32) - Hirose

Description: Board to Board & Mezzanine Connectors 1.0MM V SMT HEADER 13P TIN PLT MTL FIT

Download DF9B-13P-1V(32) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

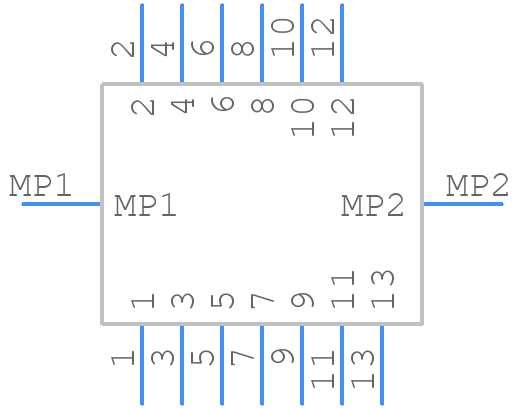

DF9B-13P-1V(32) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9B-13P-1V(32) - Hirose PCB footprint - Other - Other - DF9B-13P-1V(32)-2
click to zoom

DF9B-13P-1V(32) Details

  • Manufacturer Part Number:

    DF9B-13P-1V(32)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9B-13P-1V(32) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF9B-13P-1V(32) connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure reliable performance.
  • The maximum operating temperature range for the DF9B-13P-1V(32) connector is -40°C to +105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures, and derating may be necessary.
  • The DF9B-13P-1V(32) connector is designed to be resistant to water and chemicals, but it's not fully sealed. It's essential to follow proper sealing and protection procedures to ensure reliable performance in harsh environments.
  • The recommended torque value for the DF9B-13P-1V(32) connector's screw locks is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque value.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9B-13P-1V(32) Overview

Use the download button to access the DF9B-13P-1V(32) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9B-, or try a keyword search, such as Headers and Edge Type Connectors
