DFKF-28-0004 - SCHURTER

Description: 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm

Download DFKF-28-0004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DFKF-28-0004 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

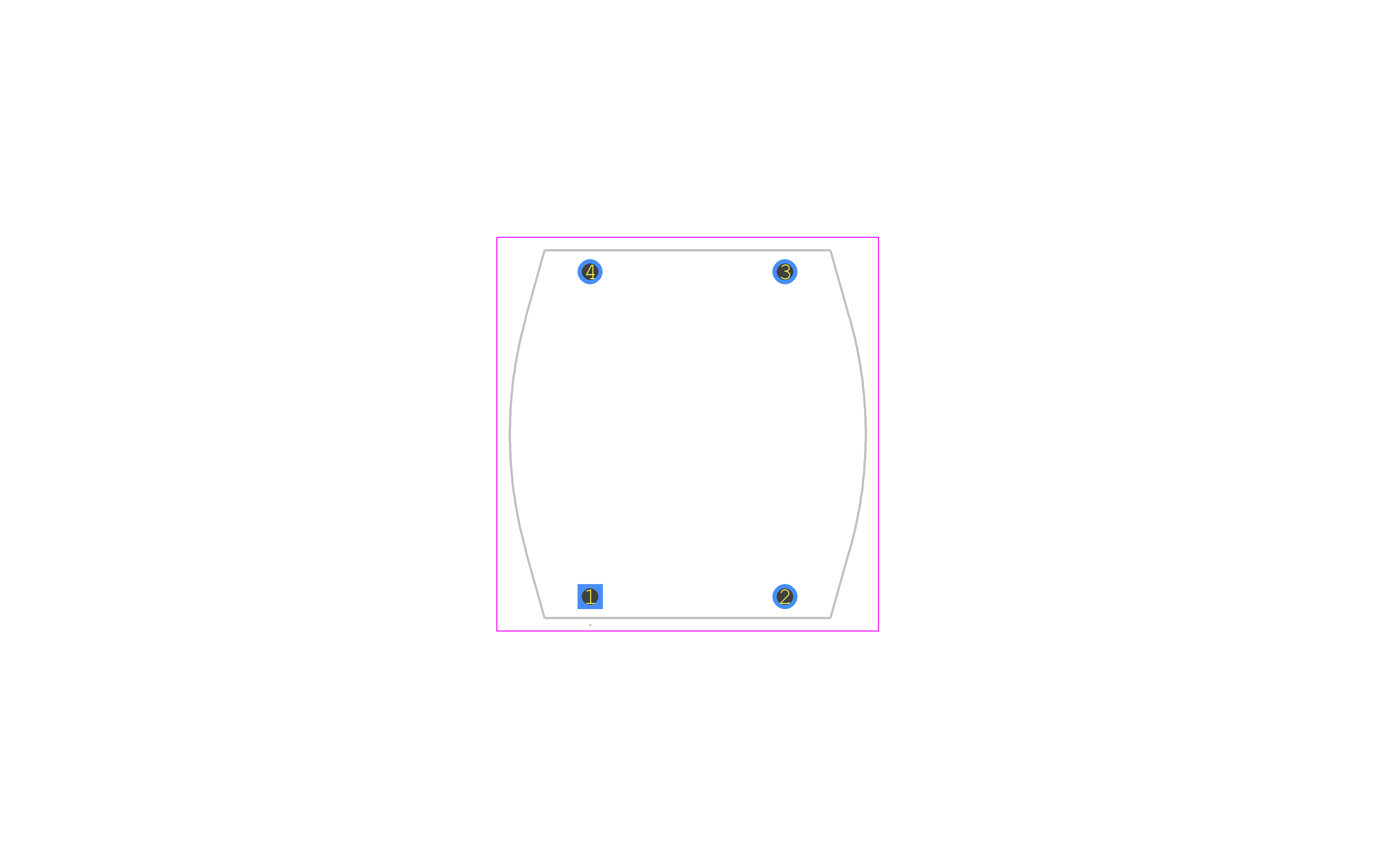

DFKF-28-0004 - SCHURTER PCB footprint - Other - Other - DFKF-28-0004-2
click to zoom
3D Models
DFKF-28-0004 - SCHURTER - 3D model - Other - DFKF-28-0004-2
click to zoom

DFKF-28-0004 Details

  • Manufacturer Part Number:

    DFKF-28-0004

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    40 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    6.7

  • Construction:

    Rectangular

  • DC Resistance:

    0.1 Ω

  • Inductance-Nom (L):

    6000 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    3.5 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Height:

    16.5 mm

  • Package Length:

    28.3 mm

  • Package Style:

    PCB Mount

  • Package Width:

    27.4 mm

  • Rated Current-Max:

    2 A

  • Self Resonance Frequency:

    0.3 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    FLAT

  • Tolerance:

    50%

DFKF-28-0004 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws of the DFKF-28-0004 is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the DFKF-28-0004 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The DFKF-28-0004 has a protection rating of IP40, which means it is protected against solid objects larger than 1mm, but not against water or moisture. It is not recommended for use in humid or wet environments without additional protection.
  • The maximum operating temperature range for the DFKF-28-0004 is -40°C to 125°C, with a derating of 1.25% per Kelvin above 80°C.
  • Yes, the DFKF-28-0004 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
