DFSG-33-0002 - SCHURTER

Description: Inductor 10 A 30mOhm Radial, Horizontal - Corner Terminals

Download DFSG-33-0002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DFSG-33-0002 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

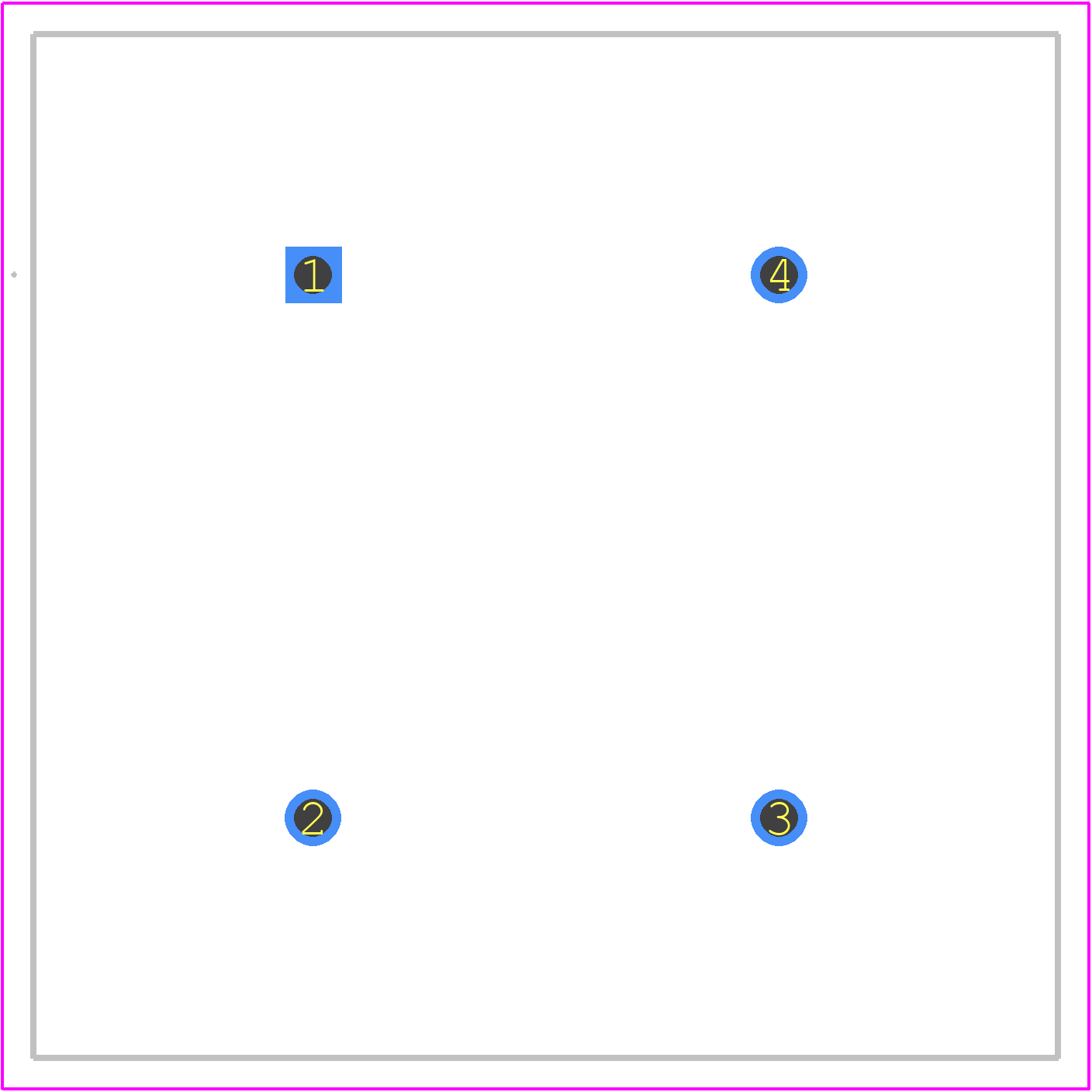

DFSG-33-0002 - SCHURTER PCB footprint - Other - Other - DFSG-33-0002-1
click to zoom
3D Models
DFSG-33-0002 - SCHURTER - 3D model - Other - DFSG-33-0002-1
click to zoom

DFSG-33-0002 Details

  • Manufacturer Part Number:

    DFSG-33-0002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    40 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.4

  • Construction:

    Rectangular

  • Core Material:

    IRON

  • DC Resistance:

    0.03 Ω

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    1 mm

  • Lead Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Height:

    25.5 mm

  • Package Length:

    33 mm

  • Package Style:

    Radial

  • Package Width:

    33 mm

  • Rated Current-Max:

    10 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

DFSG-33-0002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • Yes, the DFSG-33-0002 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for high-vibration applications.
  • The operating temperature range for the DFSG-33-0002 is -40°C to 125°C, making it suitable for high-temperature applications. However, derating may be necessary above 85°C.
  • Yes, the DFSG-33-0002 is compatible with ceramic fuses, but ensure the fuse meets the specified dimensions and ratings.
  • The recommended wire size for the screw terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
