The recommended land pattern for the DG1411EEQ-T1-GE4 can be found in the Vishay Intertechnologies' application note AN81142, which provides guidelines for PCB layout and land pattern design.
To ensure ESD protection, it is recommended to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, the DG1411EEQ-T1-GE4 has built-in ESD protection, but it's still important to follow proper handling procedures to prevent damage.
The maximum operating temperature range for the DG1411EEQ-T1-GE4 is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
The DG1411EEQ-T1-GE4 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade devices. For high-reliability or aerospace applications, it's recommended to consult with Vishay's application engineers to select the appropriate device and ensure compliance with relevant standards and regulations.
To troubleshoot issues with the DG1411EEQ-T1-GE4, start by reviewing the datasheet and application notes. Check the device's pinout, voltage ratings, and operating conditions. Use oscilloscopes and logic analyzers to debug the circuit. If the issue persists, contact Vishay Intertechnologies' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG1411EEQ-T1-GE4 Overview

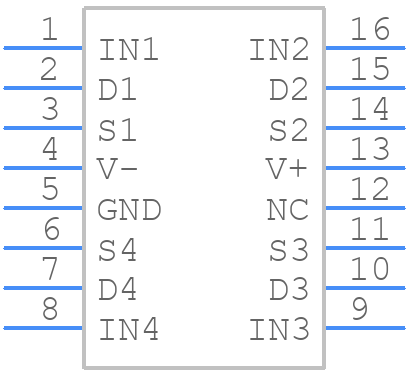

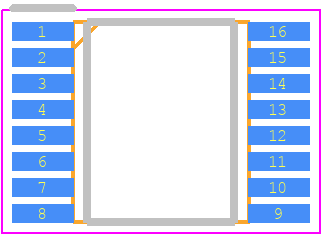

Use the download button to access the DG1411EEQ-T1-GE4 schematic symbol, PCB footprint, and 3D model.
