DG1412EEN-T1-GE4 - Vishay

Description: Analog Switch Quad SPST 16-Pin QFN EP T/R

Download DG1412EEN-T1-GE4 Model

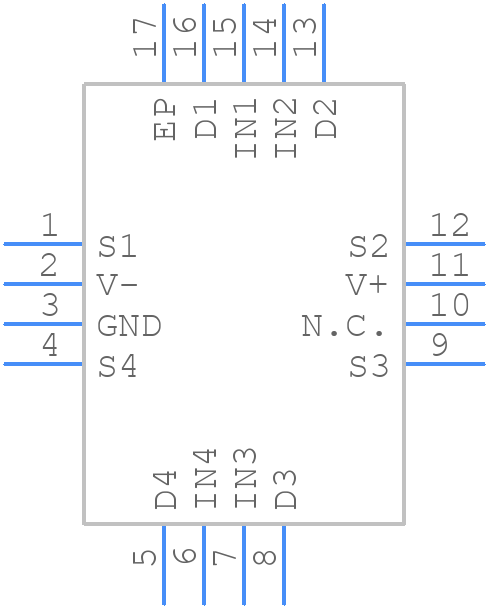

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG1412EEN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L
click to zoom
3D Models
DG1412EEN-T1-GE4 - Vishay  - 3D model - Quad Flat No-Lead - QFN 4x4-16L
click to zoom

DG1412EEN-T1-GE4 Details

  • Manufacturer Part Number:

    DG1412EEN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8.48

  • Additional Feature:

    ALSO OPERATES WITH 4.5V TO 24V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    15.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Neg Supply Voltage-Max (Vsup):

    -15 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    78 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    3.3 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Signal Current-Max:

    0.25 A

  • Supply Current-Max (Isup):

    0.29 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    440 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

DG1412EEN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DG1412EEN-T1-GE4 can be found in the Vishay Intertechnologies' application note AN81142, which provides guidelines for PCB layout and land pattern design.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermal pad or heat sink to dissipate heat. Additionally, ensure that the device is operated within the recommended operating temperature range.
  • The maximum allowable voltage for the DG1412EEN-T1-GE4 is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the DG1412EEN-T1-GE4 is suitable for high-frequency applications up to 1 GHz. However, it is recommended to consult the datasheet and application notes for specific guidance on high-frequency design considerations.
  • The DG1412EEN-T1-GE4 has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected environment.
