- Part Number DG1412EN-T1-GE4
- Manufacturer Vishay
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 4x4-16L
- Released Date Jan 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DG1412EN-T1-GE4 Details
-
Manufacturer Part Number:
DG1412EN-T1-GE4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
0
-
Analog IC - Other Type:
SPST
-
JESD-30 Code:
S-XQCC-N16
-
Length:
4 mm
-
Neg Supply Voltage-Max (Vsup):
-16.5 V
DG1412EN-T1-GE4 Frequently Asked Questions (FAQs)
-
Vishay provides a recommended PCB layout and land pattern in their application note AN502, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize parasitic inductance.
-
The DG1412EN-T1-GE4 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Vishay's recommended thermal pad layout. You can also consider using thermal interface materials to improve heat transfer.
-
While the datasheet doesn't specify a maximum operating frequency, the DG1412EN-T1-GE4 is designed for high-frequency applications. In general, it can operate up to 100 MHz or more, depending on the specific application and PCB layout. However, it's recommended to consult with Vishay's application engineers for specific guidance.
-
The DG1412EN-T1-GE4 is a commercial-grade device, but Vishay does offer high-reliability versions of similar devices. For aerospace or high-reliability applications, it's recommended to consult with Vishay's sales team or application engineers to discuss custom screening options or alternative devices that meet the required standards.
-
Follow Vishay's recommended soldering profile and guidelines, which can be found in their application note AN501. Ensure proper soldering techniques, such as using a soldering iron with a temperature range of 250°C to 260°C, and avoid excessive soldering time to prevent thermal damage.
Trust Checks
Community Provided
System Verified
Community Approved
DG1412EN-T1-GE4 Overview

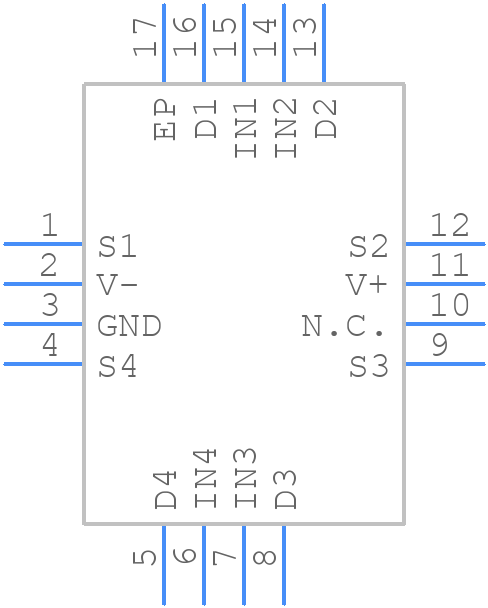

Use the download button to access the DG1412EN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
