DG2001EDV-T1-GE3 - Vishay

Description: Analog Switch ICs SPDT; 2:1 Multplxr 1.8-5.5V; TSOP-6

Download DG2001EDV-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

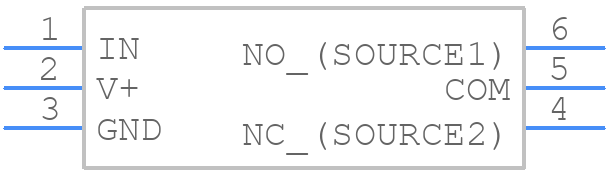

Symbol
DG2001EDV-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG2001EDV-T1-GE3 - Vishay PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP 6
click to zoom
3D Models
DG2001EDV-T1-GE3 - Vishay - 3D model - SOT23 (6-Pin) - TSOP 6
click to zoom

DG2001EDV-T1-GE3 Details

  • Manufacturer Part Number:

    DG2001EDV-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-04-15

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8.25

  • Analog IC - Other Type:

    SPDT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    3.05 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Off-state Isolation-Nom:

    63 dB

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    SOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    43 ns

  • Switch-on Time-Max:

    62 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.65 mm

DG2001EDV-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG2001EDV-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides a detailed layout and land pattern recommendation for optimal performance and reliability.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the Vishay Intertechnologies' application note AN81142. Additionally, use a solder with a melting point above 217°C (423°F) and avoid excessive soldering temperatures to prevent damage to the device.
  • The DG2001EDV-T1-GE3 is rated for operation from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related specifications.
  • The DG2001EDV-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade devices that meet specific industry standards (e.g., MIL-PRF-38535, ESCC, or NASA). Contact Vishay Intertechnologies' sales team or a qualified distributor to discuss your specific requirements and determine the most suitable device for your application.
  • The DG2001EDV-T1-GE3 is an ESD-sensitive device. To prevent damage, follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded. Consult the Vishay Intertechnologies' application note AN81142 for more information on ESD handling and protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG2001EDV-T1-GE3 Overview

Use the download button to access the DG2001EDV-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG200, or try a keyword search, such as Multiplexers or Switches
