Part Image

DG2034EDN-T1-GE4 - Vishay

Description: Gate Drivers 2.5ohm 1.8-5.5V 4:1 Multiplexer

Download DG2034EDN-T1-GE4 Model

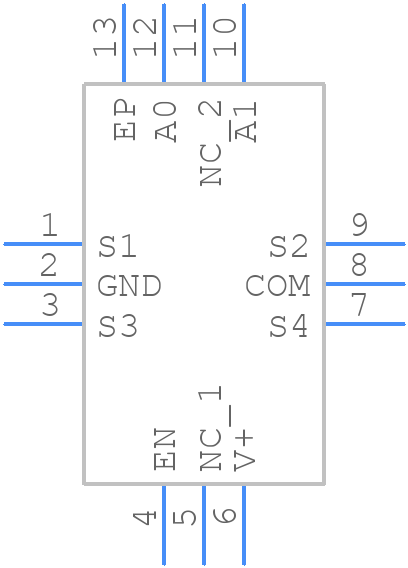

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG2034EDN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_12
click to zoom
3D Models
DG2034EDN-T1-GE4 - Vishay  - 3D model - Quad Flat No-Lead - QFN_12
click to zoom

DG2034EDN-T1-GE4 Details

  • Manufacturer Part Number:

    DG2034EDN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    52 dB

  • On-state Resistance Match-Nom:

    0.02 Ω

  • On-state Resistance-Max (Ron):

    11 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    36 ns

  • Switch-on Time-Max:

    39 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DG2034EDN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG2034EDN-T1-GE4 is a standard 0402 package with a land pattern of 0.5 mm x 0.5 mm. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
  • To prevent damage, handle the DG2034EDN-T1-GE4 by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat. Also, ensure the assembly process follows the recommended soldering temperature and time to prevent thermal shock.
  • The DG2034EDN-T1-GE4 has an operating temperature range of -55°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and it's recommended to operate within the specified temperature range for optimal performance.
  • The DG2034EDN-T1-GE4 is a general-purpose resistor suitable for most applications up to 100 kHz. However, for high-frequency applications above 100 kHz, it's recommended to use a high-frequency resistor specifically designed for such applications to ensure optimal performance and minimize signal attenuation.
  • Store the DG2034EDN-T1-GE4 in its original packaging or a dry, cool place with a relative humidity of 50% or less. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures, which can affect its shelf life and performance.
