The recommended land pattern for the DG2034EDQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN42172, which provides detailed guidelines for PCB layout and assembly.
To handle the ESD sensitivity of the DG2034EDQ-T1-GE3, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, the device should be handled in a controlled environment with minimal humidity and temperature fluctuations.
The maximum operating temperature range for the DG2034EDQ-T1-GE3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
Yes, the DG2034EDQ-T1-GE3 is suitable for high-reliability applications. Vishay Intertechnologies provides a range of reliability data, including FIT rates and MTBF calculations, which can be used to assess the device's suitability for specific applications. Additionally, the device is manufactured using a robust process that ensures high reliability and low defect rates.
To ensure proper soldering of the DG2034EDQ-T1-GE3, it is recommended to follow the recommended soldering profile provided in the datasheet. The user should also ensure that the PCB is designed with a suitable solder mask and that the soldering process is performed in a controlled environment with minimal thermal stress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2034EDQ-T1-GE3 Overview

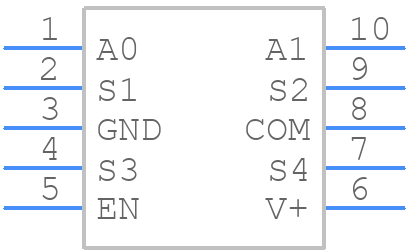

Use the download button to access the DG2034EDQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
