DG211CJ+ - Analog Devices

Description: Maxim DG211CJ+, Analogue Switch Quad SPST, 16-Pin PDIP

Download DG211CJ+ Model

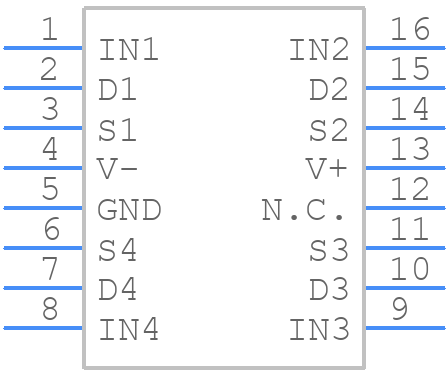

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG211CJ+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - pdip16-
click to zoom
3D Models
DG211CJ+ - Analog Devices  - 3D model - Dual-In-Line Packages - pdip16-
click to zoom

DG211CJ+ Details

  • Manufacturer Part Number:

    DG211CJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, MO-058AB, MS-001AA, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    500 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

DG211CJ+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the VREF pin.
  • The DG211CJ+ requires a single 5V supply (VCC) and a separate analog ground (AGND). Power sequencing is not critical, but it's recommended to power up the VCC pin first, followed by the logic inputs. Ensure the power supply is clean and regulated to prevent noise and voltage drops.
  • The DG211CJ+ can operate up to 100MHz, but the performance may degrade at higher frequencies due to increased power consumption and noise. To ensure optimal performance, it's recommended to operate the device at frequencies below 50MHz.
  • The DG211CJ+ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. Avoid exposing the device to high temperatures during soldering or rework.
  • The DG211CJ+ has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. To prevent latch-up, ensure the device is powered up and down slowly, and avoid applying voltage to the inputs before the power supply is stable.
