DG211CJZ - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The DG211 is a low cost, CMOS monolithic, Quad SPST analog switch. It can be used in general purpose switching applications for communications, instrumentation, process control and computer peripheral equipment and provides true bi-directional performance in the ON condition and blocks signals to 30VP-P in the OFF condition.

Download DG211CJZ Model

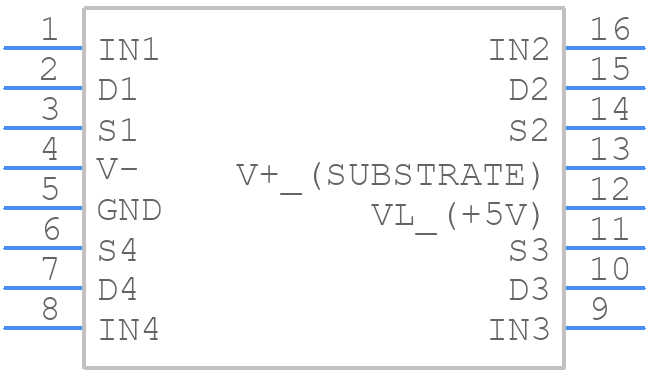

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG211CJZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E16.3-ren1
click to zoom
3D Models
DG211CJZ - Renesas Electronics  - 3D model - Dual-In-Line Packages - E16.3-ren1
click to zoom

DG211CJZ Details

  • Manufacturer Part Number:

    DG211CJZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    PDIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    E16.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.17 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

DG211CJZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG211CJZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. Additionally, placing decoupling capacitors close to the device and using a low-ESR capacitor for the VCC pin can help improve performance.
  • To ensure proper powering and decoupling, connect the VCC pin to a stable 5V power supply, and use a 0.1uF to 1uF decoupling capacitor between VCC and GND, placed as close to the device as possible. Additionally, consider adding a 10uF to 100uF bulk capacitor to the power supply line to filter out noise and ripple.
  • The maximum allowable voltage on the analog input pins of the DG211CJZ is VCC + 0.3V, which is 5.3V for a 5V power supply. Exceeding this voltage can cause damage to the device. It's recommended to use input protection circuits or voltage dividers to ensure the input voltage stays within the safe operating range.
  • To handle ESD protection for the DG211CJZ, use ESD protection devices such as TVS diodes or ESD protection arrays on the input pins. Additionally, follow proper handling and storage procedures to prevent ESD damage, such as using anti-static wrist straps, mats, and bags.
  • The recommended operating temperature range for the DG211CJZ is -40°C to +85°C. Operating the device outside this range can affect its performance, reliability, and lifespan. Ensure proper thermal management and heat dissipation to maintain a safe operating temperature.
