DG211DY+ - Analog Devices

Description: DG211DY+, Analogue Switch Quad SPST, 16-Pin, SOIC, 4

Download DG211DY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

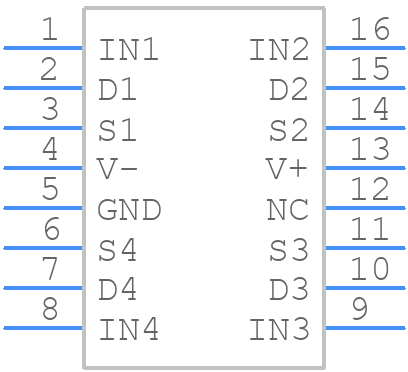

Symbol
DG211DY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DG211DY+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
DG211DY+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

DG211DY+ Details

  • Manufacturer Part Number:

    DG211DY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    500 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG211DY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG211DY+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the analog inputs.
  • The DG211DY+ requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirement is to power up the VCC pin before the logic inputs, and to ensure that the VCC pin is stable before applying any logic signals.
  • The maximum allowable voltage on the analog inputs of the DG211DY+ is 5.5V. To protect the device from overvoltage, it's recommended to use a voltage clamp or a resistor divider network to limit the input voltage to within the specified range.
  • The correct value of the external resistors required for the DG211DY+ depends on the specific application and the desired analog signal range. The datasheet provides a formula to calculate the required resistor values based on the desired analog signal range and the reference voltage.
  • The recommended operating temperature range for the DG211DY+ is -40°C to +125°C. Temperature affects the device's performance by changing its offset voltage, gain, and linearity. The datasheet provides temperature-related specifications and graphs to help designers understand the device's behavior over temperature.
