DG212BDJ-E3 - Vishay

DG212BDJ-E3 Details

• Manufacturer Part Number:

  DG212BDJ-E3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  0

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  20.13 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -22 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  90 dB

• On-state Resistance Match-Nom:

  2 Ω

• On-state Resistance-Max (Ron):

  85 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

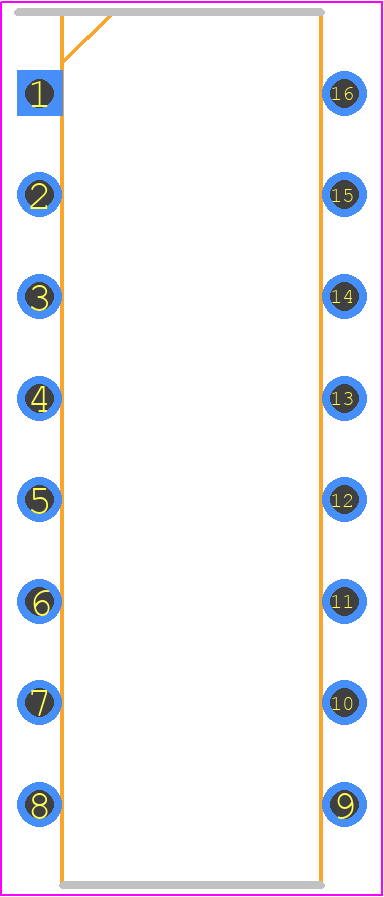

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  22 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  200 ns

• Switch-on Time-Max:

  300 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
