DG2501DB-T2-GE1 - Vishay

Description: Analog Switch ICs 200 ohm Switch NC Quad SPST Analog

Download DG2501DB-T2-GE1 Model

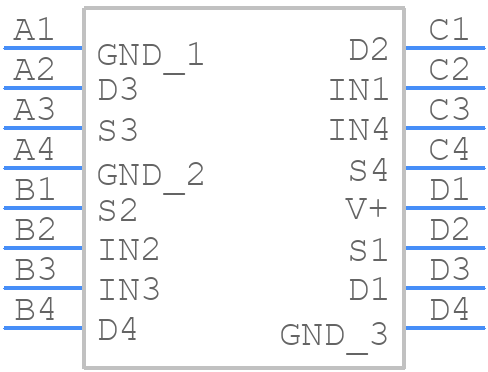

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG2501DB-T2-GE1 - Vishay PCB footprint - BGA - BGA - WCSP 4 x 4: 16 Bumps
click to zoom
3D Models
DG2501DB-T2-GE1 - Vishay  - 3D model - BGA - WCSP 4 x 4: 16 Bumps
click to zoom

DG2501DB-T2-GE1 Details

  • Manufacturer Part Number:

    DG2501DB-T2-GE1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.44 mm

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    83 dB

  • On-state Resistance Match-Nom:

    0.83 Ω

  • On-state Resistance-Max (Ron):

    250 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,14

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.504 mm

  • Signal Current-Max:

    0.005 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.44 mm

DG2501DB-T2-GE1 Frequently Asked Questions (FAQs)

  • Vishay provides a recommended PCB layout and land pattern in their application note AN502, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize parasitic inductance.
  • To handle the high current capability of the DG2501DB-T2-GE1, ensure that your PCB design includes adequate copper thickness, width, and spacing to minimize resistive losses and thermal hotspots. Additionally, consider using thermal vias and heat sinks to dissipate heat efficiently.
  • While the datasheet specifies an operating temperature range of -55°C to 150°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with Vishay's application engineers or refer to their reliability reports for more information on temperature-related derating.
  • Yes, the DG2501DB-T2-GE1 is suitable for high-frequency switching applications due to its low capacitance and inductance. However, ensure that your design takes into account the device's parasitic components, PCB layout, and switching frequency to minimize ringing and electromagnetic interference (EMI).
  • To ensure the reliability and longevity of the DG2501DB-T2-GE1, follow Vishay's recommended storage and handling guidelines, and avoid exposing the device to mechanical stress, moisture, or extreme temperatures. Additionally, consider implementing overcurrent protection, overvoltage protection, and thermal monitoring in your design.
