The recommended PCB footprint for the DG2502DB-T2-GE1 is a 2x2 array of 0.5mm x 0.5mm pads with a 1.27mm pitch. It's essential to follow the recommended footprint to ensure proper thermal and electrical performance.
To handle thermal management, ensure a good thermal connection between the device and the PCB. Use a thermal pad or a thermal interface material (TIM) to fill the gap between the device and the PCB. Additionally, consider using a heat sink or a thermal management system to dissipate heat efficiently.
The maximum operating temperature range for the DG2502DB-T2-GE1 is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range.
While the DG2502DB-T2-GE1 is a high-quality device, it's essential to consult with Vishay Intertechnologies or a qualified representative to determine its suitability for high-reliability or aerospace applications. Additional testing, screening, or qualification may be required to meet the specific requirements of these applications.
To ensure ESD protection, handle the DG2502DB-T2-GE1 with ESD-safe materials and tools. Ground yourself and the device before handling, and avoid touching the device's pins or electrical connections. Use ESD-protective packaging and storage materials to prevent damage during transportation and storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2502DB-T2-GE1 Overview

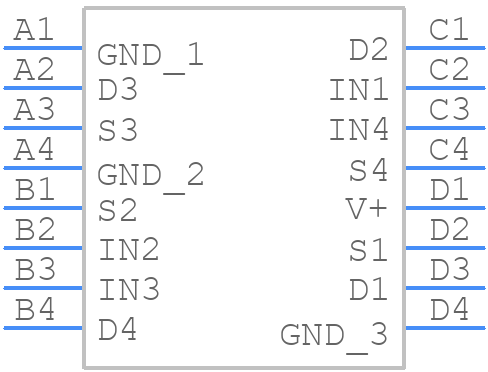

Use the download button to access the DG2502DB-T2-GE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG250,
or try a keyword search, such as Multiplexers or Switches
