The recommended PCB footprint for the DG2519EDN-T1-GE4 is a standard QFN16 package with a 3x3 mm body size and 0.5 mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
The maximum allowable voltage on the DG2519EDN-T1-GE4's control pins is 5.5 V. Exceeding this voltage may damage the device or affect its reliability.
Yes, the DG2519EDN-T1-GE4 is suitable for switching applications with high-frequency signals. However, ensure that the device is properly bypassed and decoupled to minimize ringing and overshoot. Follow the recommended layout and PCB design guidelines to minimize parasitic inductance and capacitance.
The optimal resistor value for the DG2519EDN-T1-GE4's pull-up/pull-down resistors depends on the specific application and signal requirements. As a general guideline, use a resistor value between 1 kΩ and 10 kΩ. Consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2519EDN-T1-GE4 Overview

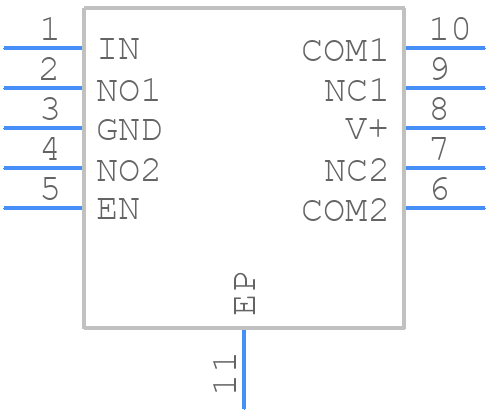

Use the download button to access the DG2519EDN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG251,
or try a keyword search, such as Multiplexers or Switches
