The recommended PCB footprint for the DG2523DN-T1-GE4 is a 2x2 array of 0.5mm diameter pads with a 1.5mm pitch. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C. Apply a small amount of solder paste to the PCB pads, and then place the DG2523DN-T1-GE4 on the pads. Use a reflow oven or a hot air gun to melt the solder paste, and ensure the component is properly aligned during the soldering process.
The DG2523DN-T1-GE4 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the DG2523DN-T1-GE4 is suitable for high-reliability applications. It's manufactured using a robust process, and Vishay Intertechnologies provides a high level of quality control. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device meets the required reliability standards.
To prevent damage, store the DG2523DN-T1-GE4 in its original packaging or an equivalent ESD-protective package. Avoid exposing the device to moisture, extreme temperatures, or physical stress during storage and shipping. Follow the recommended handling and storage procedures outlined in the datasheet and industry standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2523DN-T1-GE4 Overview

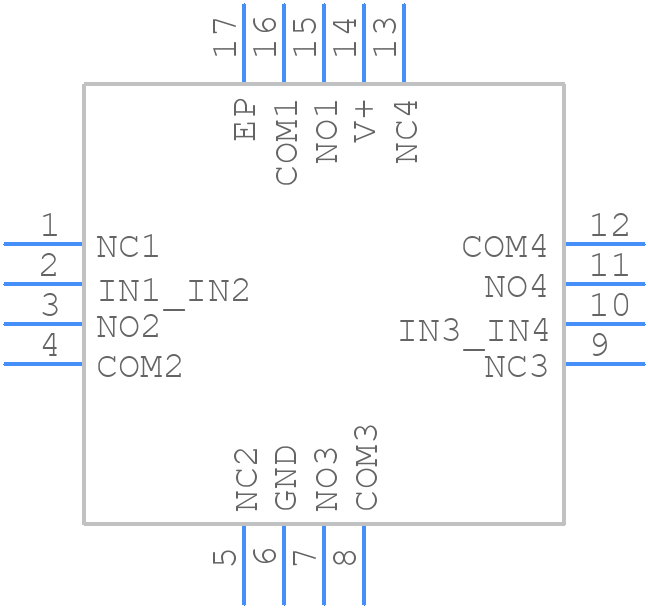

Use the download button to access the DG2523DN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG252,
or try a keyword search, such as Multiplexers or Switches
