DG2525DN-T1-GE4 - Vishay

Description: VISHAY - DG2525DN-T1-GE4 - ANALOGUE SWITCH, 4 CH, SPDT, MINIQFN-16

Download DG2525DN-T1-GE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

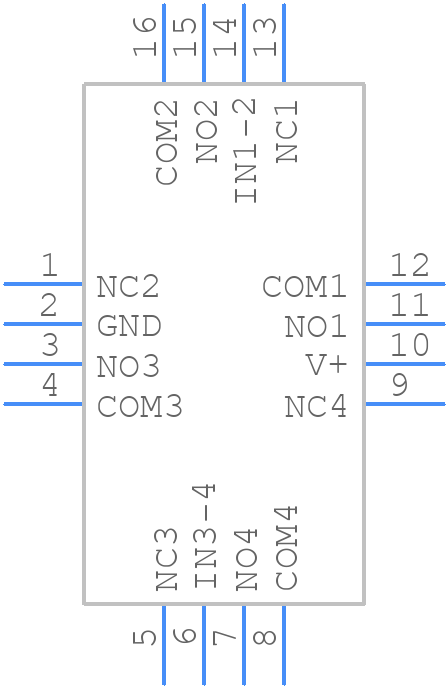

DG2525DN-T1-GE4 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG2525DN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Thin miniQFN16
click to zoom
3D Models
DG2525DN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - Thin miniQFN16
click to zoom

DG2525DN-T1-GE4 Details

  • Manufacturer Part Number:

    DG2525DN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2016-08-16

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8.68

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance Match-Nom:

    0.05 Ω

  • On-state Resistance-Max (Ron):

    0.6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    3000 ns

  • Switch-on Time-Max:

    70000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Finish:

    PALLADIUM GOLD OVER NICKEL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

DG2525DN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG2525DN-T1-GE4 is a 2.5mm x 2.5mm pad with a 1.5mm x 1.5mm thermal pad. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
  • To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the DG2525DN-T1-GE4 on the PCB. Use a reflow oven or a hot air gun to solder the device. Avoid overheating or applying excessive force, which can damage the device.
  • The DG2525DN-T1-GE4 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
  • The DG2525DN-T1-GE4 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must use the device in a humid environment, ensure proper conformal coating and follow the manufacturer's guidelines for moisture protection.
  • Handle the DG2525DN-T1-GE4 by the edges to prevent damage to the pins or the device's surface. Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG2525DN-T1-GE4 Overview

Use the download button to access the DG2525DN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
