DG2730DN-T1-GE4 footprint, schematic symbol and 3D model by Vishay

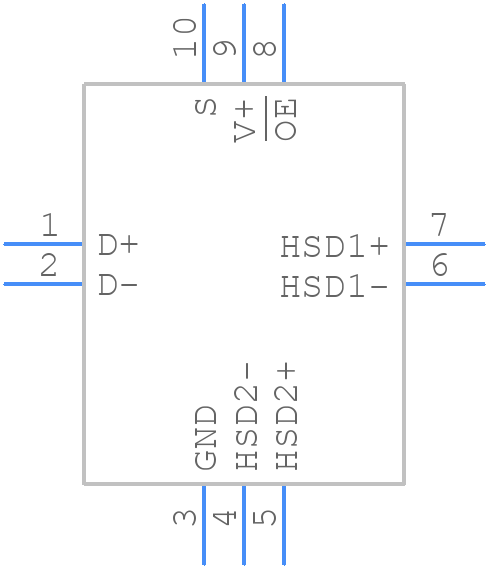

Symbol

click to zoom

PCB Footprints

DG2730DN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MINI QFN-10L 1

click to zoom

3D Models

DG2730DN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - MINI QFN-10L 1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG2730DN-T1-GE4
Part Number DG2730DN-T1-GE4
Manufacturer Vishay
Pin Count 10
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - MINI QFN-10L 1
Released Date Nov 28, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG2730DN-T1-GE4 Details

Manufacturer Part Number:
DG2730DN-T1-GE4
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-10
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.95
Analog IC - Other Type:
DPDT
JESD-30 Code:
R-XQCC-N10
JESD-609 Code:
e4
Length:
1.8 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
10
Off-state Isolation-Nom:
30 dB
On-state Resistance Match-Nom:
0.8 Ω
On-state Resistance-Max (Ron):
8 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC10,.06X.07,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
4.3 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Switch-off Time-Max:
25 ns
Switch-on Time-Max:
30 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40
Width:
1.4 mm

DG2730DN-T1-GE4 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the DG2730DN-T1-GE4 is a 4-pad QFN package with a 2x2 mm body size and 0.5 mm pitch. A recommended land pattern is available in the Vishay Intertechnologies application note AN81142.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow. The device is rated for operation up to 125°C, but derating may be necessary for extended reliability.
The recommended drive strength for the DG2730DN-T1-GE4 is a 10-20 mA output current, depending on the specific application requirements. It is essential to ensure that the drive strength is sufficient to maintain signal integrity and prevent signal degradation.
The DG2730DN-T1-GE4 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and wrist straps to prevent damage to the device.
The recommended power sequencing for the DG2730DN-T1-GE4 is to power up the VCC supply before the VEE supply. This ensures proper device operation and prevents potential latch-up or damage to the device.

Trust Checks

Community Provided

System Verified

Community Approved

DG2730DN-T1-GE4 Overview

Use the download button to access the DG2730DN-T1-GE4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DG273, or try a keyword search, such as Multiplexers or Switches
