- Part Number DG2733EDQ-T1-GE3
- Manufacturer Vishay
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - msop 10 pin
- Released Date Feb 4, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DG2733EDQ-T1-GE3 Details
-
Manufacturer Part Number:
DG2733EDQ-T1-GE3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MSOP-10
-
Country Of Origin:
Japan
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
8
-
Analog IC - Other Type:
SPDT
-
JESD-30 Code:
S-PDSO-G10
DG2733EDQ-T1-GE3 Frequently Asked Questions (FAQs)
-
The recommended PCB footprint for the DG2733EDQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides a detailed layout and land pattern recommendation for optimal performance and reliability.
-
Follow the recommended soldering and reflow profile outlined in the Vishay Intertechnologies' application note AN80103, which provides guidelines for temperature, time, and soldering techniques to ensure reliable assembly and minimize defects.
-
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. For optimal performance, it's recommended to operate the device within a temperature range of -20°C to 100°C.
-
The DG2733EDQ-T1-GE3 is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if you must operate the device in a humid environment, ensure that the PCB is properly coated with a moisture-resistant conformal coating and follow proper handling and storage procedures to minimize moisture exposure.
-
Handle the DG2733EDQ-T1-GE3 with care to prevent mechanical damage and electrostatic discharge (ESD). Store the devices in their original packaging or in a dry, ESD-protected environment, and avoid exposing them to extreme temperatures, humidity, or physical stress.
Trust Checks
Community Provided
System Verified
Community Approved
DG2733EDQ-T1-GE3 Overview

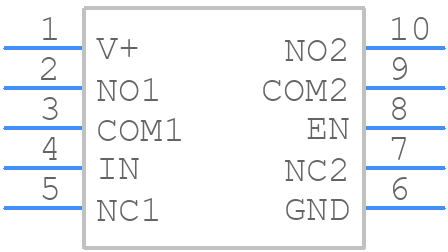

Use the download button to access the DG2733EDQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG273,
or try a keyword search, such as Multiplexers or Switches
