The recommended PCB footprint for the DG2735ADN-T1-GE4 is a standard QFN16 package with a 3x3 mm body size and 0.5 mm pitch. A recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from the manufacturer's website.
To ensure reliable operation of the DG2735ADN-T1-GE4 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
The recommended power-up sequence for the DG2735ADN-T1-GE4 is to apply the analog supply voltage (VDDA) before the digital supply voltage (VDDD). This ensures proper initialization of the device and prevents any potential latch-up conditions.
The DG2735ADN-T1-GE4 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding wrist straps, and using ESD-protected workstations.
The recommended layout and routing for the DG2735ADN-T1-GE4 involves keeping analog and digital signals separate, using short and direct traces, and avoiding crossing signals over each other. Additionally, it is recommended to use a solid ground plane and to decouple the power supplies with capacitors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2735ADN-T1-GE4 Overview

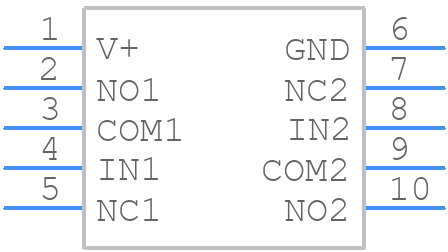

Use the download button to access the DG2735ADN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
