The recommended PCB footprint for the DG2750DN-T1-E4 is a 4-pad QFN package with a 2x2 mm body size and 0.5 mm pitch. The recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from the manufacturer's technical support team.
To ensure reliability in high-temperature applications, it is essential to follow proper PCB design and layout guidelines, including thermal management considerations. Additionally, the device should be operated within the recommended temperature range, and the junction temperature should be monitored to prevent overheating.
The maximum allowable power dissipation for the DG2750DN-T1-E4 is dependent on the ambient temperature and the thermal resistance of the device. According to the datasheet, the maximum power dissipation is 1.4 W at 25°C ambient temperature. However, this value may vary depending on the specific application and operating conditions.
Yes, the DG2750DN-T1-E4 is suitable for high-frequency applications due to its low capacitance and high-frequency switching capabilities. However, the device's performance may degrade at extremely high frequencies, and additional design considerations may be necessary to ensure optimal performance.
The DG2750DN-T1-E4 has built-in ESD protection and latch-up prevention measures, including internal ESD diodes and a latch-up protected design. However, it is still essential to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2750DN-T1-E4 Overview

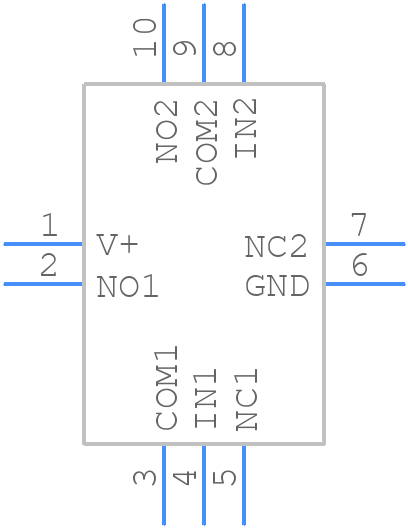

Use the download button to access the DG2750DN-T1-E4 schematic symbol, PCB footprint, and 3D model.
