DG301ACJ - Analog Devices

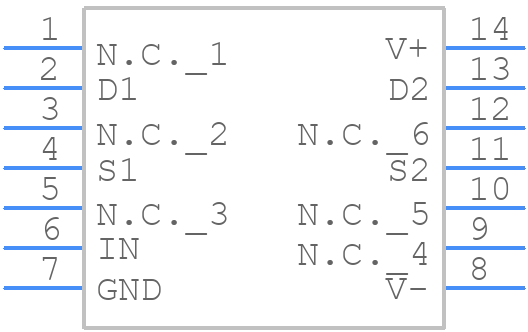

DG301ACJ Details

• Manufacturer Part Number:

  DG301ACJ

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDIP-T14

• Length:

  19.05 mm

• Neg Supply Voltage-Max (Vsup):

  -18 V

• Neg Supply Voltage-Min (Vsup):

  -5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Off-state Isolation-Nom:

  62 dB

• On-state Resistance-Max (Ron):

  75 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  4.572 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  1 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  250 ns

• Switch-on Time-Max:

  300 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
