DG303AAK/883B - Analog Devices

Description: TTL Compatible CMOS Analog Switches

Download DG303AAK/883B Model

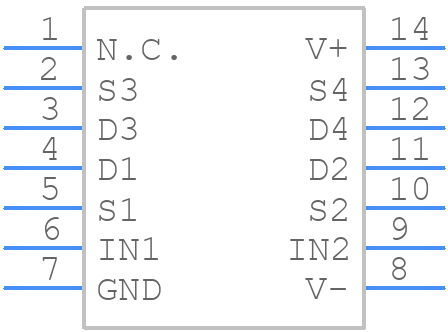

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

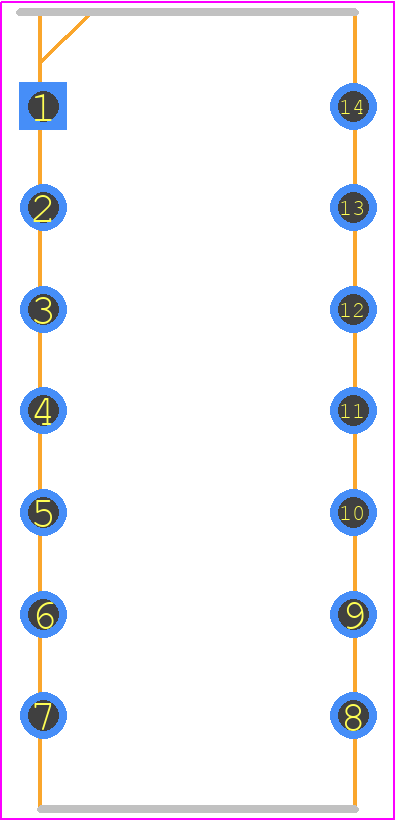

DG303AAK/883B - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J14-3
click to zoom

DG303AAK/883B Details

  • Manufacturer Part Number:

    DG303AAK/883B

  • Brand Name:

    Analog Devices Inc

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-CERDIP-300_MIL

  • Package Description:

    0.300 INCH, CERAMIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-CERDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1988-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.43 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    250 ns

  • Switch-on Time-Max:

    300 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DG303AAK/883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG303AAK/883B should minimize parasitic inductance and capacitance. Keep the analog and digital grounds separate, and use a solid ground plane to reduce noise. Place the device close to the power supply and use short, wide traces for the power lines. Avoid routing digital signals near the analog inputs.
  • The DG303AAK/883B requires a dual power supply (±15V) and a bias voltage (VCC) of 5V. Ensure that the power supplies are well-regulated and decoupled with capacitors (e.g., 10uF and 100nF) to reduce noise. The bias voltage should be derived from a stable 5V source, such as a voltage regulator.
  • The DG303AAK/883B is rated for operation from -55°C to +125°C (military temperature range). However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The DG303AAK/883B is a sensitive device and requires ESD protection. Handle the device by the body, not the pins, and use an anti-static wrist strap or mat. Store the device in an anti-static bag or tube, and ensure that the PCB is designed with ESD protection in mind (e.g., using ESD diodes or resistors).
  • The DG303AAK/883B is a hermetically sealed device and can be soldered using a standard reflow soldering process. A recommended soldering profile is: peak temperature of 220°C, with a dwell time of 10-30 seconds above 183°C. Ensure that the PCB is designed for reflow soldering and that the device is properly aligned during the soldering process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG303AAK/883B Overview

Use the download button to access the DG303AAK/883B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DG303, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to DG303AAK/883B

Showing 0 results

DG303AAK/883B Alternates

Showing results

Image Part Number Model
Part Image DG303ACJ+ Analog Devices Inc

SPDT, 2 Func, 2 Channel, CMOS, PDIP14

Part Image DG303AK Analog Devices Inc

SPDT, 2 Func, 2 Channel, CMOS, CDIP14

Part Image DG303BK Maxim Integrated Products

SPDT, 2 Func, 2 Channel, CMOS, CDIP14

Part Image DG303CK Maxim Integrated Products

SPDT, 2 Func, 2 Channel, CMOS, CDIP14

Part Image M38510/11604BCX Harris Semiconductor

SPDT, 2 Func, 2 Channel, CMOS, CDIP14

For a full list of alternate parts for DG303AAK/883B, check out Findchips.com
