DG303ACJ+ - Analog Devices

Description: Monolithic Low-Power CMOS ♦ Latchup Proof Construction ♦ Fully Compatible 2nd Source ♦ Low On-Resistance, <50Ω ♦ Fast Switching Time ♦ V+ to V- Analog Signal Range ♦ Single-Supply Capability

Download DG303ACJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

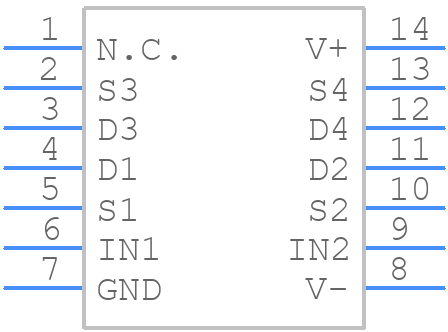

Symbol
DG303ACJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DG303ACJ+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 Lead Plastic DIP
click to zoom
3D Models
DG303ACJ+ - Analog Devices - 3D model - Dual-In-Line Packages - 14 Lead Plastic DIP
click to zoom

DG303ACJ+ Details

  • Manufacturer Part Number:

    DG303ACJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-PDIP-300_MIL

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, MS-001AA, MO-058AC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1988-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    250 ns

  • Switch-on Time-Max:

    300 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

DG303ACJ+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG303ACJ+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals to minimize noise and crosstalk.
  • For high-frequency applications, it's essential to use a low-ESR capacitor (e.g., 10nF to 100nF) between the VCC and GND pins to filter out high-frequency noise. Additionally, ensure that the input signals are properly terminated, and the output signals are properly loaded to prevent ringing and reflections.
  • The DG303ACJ+ has an operating temperature range of -40°C to +125°C. As the temperature increases, the device's performance may degrade, resulting in increased power consumption, reduced bandwidth, and decreased accuracy. Ensure proper thermal management and heat dissipation to maintain optimal performance.
  • To troubleshoot issues with the DG303ACJ+, start by verifying the power supply voltage, ensuring it's within the recommended range. Check the input signals for proper termination and loading. Use an oscilloscope to inspect the output signals for oscillations or unexpected voltage levels. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the DG303ACJ+ can be used in switching regulator applications. However, take precautions to ensure the device is properly bypassed and decoupled to prevent high-frequency noise from affecting its performance. Use a low-ESR capacitor (e.g., 10uF to 100uF) between the VCC and GND pins, and consider adding a ferrite bead or inductor to filter out high-frequency noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG303ACJ+ Overview

Use the download button to access the DG303ACJ+ schematic symbol, PCB footprint, and 3D model.
