DG303BDJ-E3 - Vishay

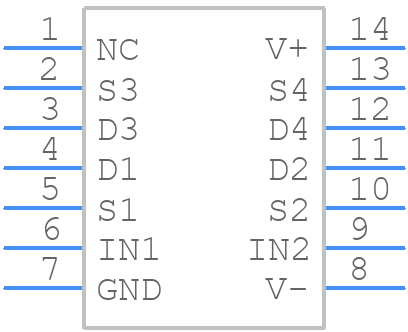

DG303BDJ-E3 Details

• Manufacturer Part Number:

  DG303BDJ-E3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

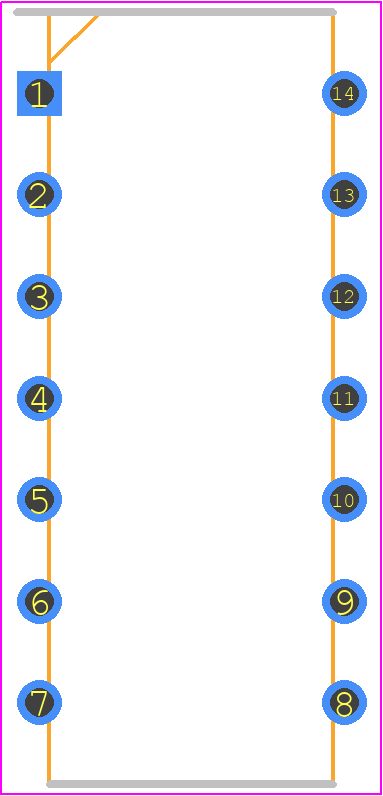

• Package Description:

  DIP-14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  0

• Analog IC - Other Type:

  DPST

• Input Voltage-Max:

  15 V

• Input Voltage-Min:

  -15 V

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e3

• Length:

  18.285 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO/NC

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  14

• Off-state Isolation-Nom:

  62 dB

• On-state Resistance-Max (Ron):

  50 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  1 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  130 ns

• Switch-on Time-Max:

  150 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.62 mm
