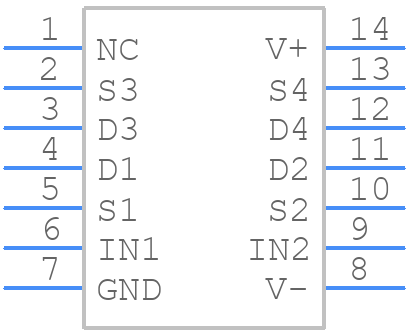

Symbol
PCB Footprints
- Datasheet
- Stock & Prices $ Price & Stock for DG303BDY
- Part Number DG303BDY
- Manufacturer Vishay
- Pin Count 14
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - SOIC127P600X175-14N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DG303BDY Details
-
Manufacturer Part Number:
DG303BDY
-
Manufacturer:
Vishay Intertechnologies
Trust Checks
System Verified
DG303BDY Overview
Use the download button to access the DG303BDY schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DG303,
or try a keyword search, such as Multiplexers or Switches
