DG307AAK/883B - Analog Devices

Description: Analogue Switch ICs Dual SPDT CMOS

Download DG307AAK/883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

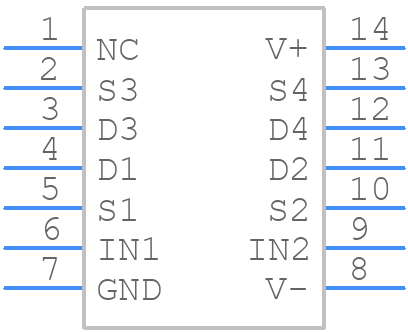

DG307AAK/883B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

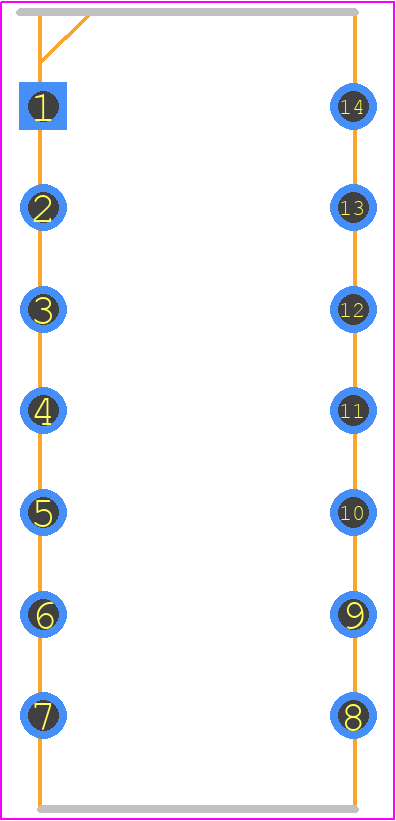

DG307AAK/883B - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - J14-3
click to zoom
3D Models
DG307AAK/883B - Analog Devices - 3D model - Dual-In-Line Packages - J14-3
click to zoom

DG307AAK/883B Details

  • Manufacturer Part Number:

    DG307AAK/883B

  • Brand Name:

    Analog Devices Inc

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-CERDIP-300_MIL

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-CERDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1988-02-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.43 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    CERAMIC

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M; 38534H; 883B

  • Seated Height-Max:

    5.08 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DG307AAK/883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG307AAK/883B should minimize parasitic inductance and capacitance. Keep the analog and digital grounds separate, and use a solid ground plane to reduce noise. Place the device close to the power supply and use short, wide traces for the power lines. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • The DG307AAK/883B requires a single 5V power supply. Use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Decouple the power pins with a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed close to the device. This will help reduce noise and ensure stable operation.
  • The DG307AAK/883B is a high-speed analog switch with a typical bandwidth of 200MHz. The maximum data rate achievable depends on the specific application and signal characteristics. However, in general, data rates up to 100Mbps can be achieved with proper PCB layout and signal termination.
  • The DG307AAK/883B has built-in ESD protection, but it's still important to take precautions during handling and assembly. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
  • The DG307AAK/883B is specified to operate over a temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG307AAK/883B Overview

Use the download button to access the DG307AAK/883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG307, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
