Part Image

DG333ADQ-T1-E3 - Vishay

Description: Analog Switch ICs PRECISION QUAD SPBT ANALOG SWTCH

Download DG333ADQ-T1-E3 Model

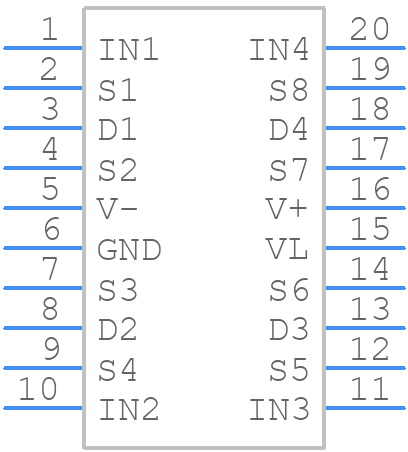

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG333ADQ-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP: 20-LEAD
click to zoom

DG333ADQ-T1-E3 Details

  • Manufacturer Part Number:

    DG333ADQ-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Israel

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DG333ADQ-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the DG333ADQ-T1-E3 is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 60%.
  • Handle the DG333ADQ-T1-E3 by the body, avoiding touching the leads or glass areas. Use anti-static wrist straps, mats, or floors to prevent electrostatic discharge damage.
  • The maximum allowable power dissipation for the DG333ADQ-T1-E3 is 500 mW. Exceeding this limit may cause the device to overheat and fail.
  • Yes, the DG333ADQ-T1-E3 is suitable for high-frequency applications up to 100 MHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the circuit.
  • Yes, the DG333ADQ-T1-E3 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
