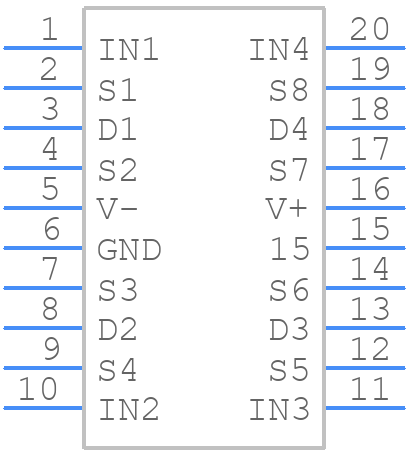

DG333ADW-T1-E3 - Vishay

DG333ADW-T1-E3 Details

• Manufacturer Part Number:

  DG333ADW-T1-E3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  7.38

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Neg Supply Voltage-Max (Vsup):

  -22 V

• Neg Supply Voltage-Min (Vsup):

  -4 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Off-state Isolation-Nom:

  72 dB

• On-state Resistance Match-Nom:

  2 Ω

• On-state Resistance-Max (Ron):

  45 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.54 mm

• Signal Current-Max:

  0.03 A

• Supply Voltage-Max (Vsup):

  22 V

• Supply Voltage-Min (Vsup):

  4 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  145 ns

• Switch-on Time-Max:

  175 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
