DG401DY-T1-E3 - Vishay

Description: Analog Switch ICs DUAL SPDT SWITCH

Download DG401DY-T1-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

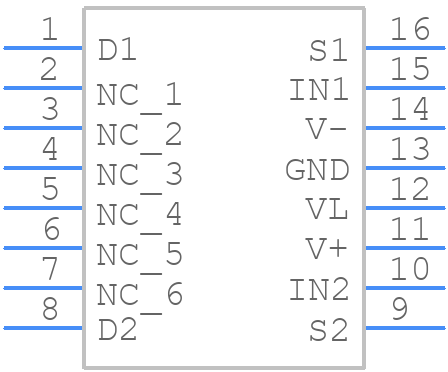

Symbol
DG401DY-T1-E3 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG401DY-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 16 LEAD SOIC-
click to zoom
3D Models
DG401DY-T1-E3 - Vishay - 3D model - Small Outline Packages - 16 LEAD SOIC-
click to zoom

DG401DY-T1-E3 Details

  • Manufacturer Part Number:

    DG401DY-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.38

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG401DY-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG401DY-T1-E3 is a standard SOT23-3 package with a minimum pad size of 0.8mm x 0.8mm and a maximum pad size of 1.2mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape.
  • To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux to the pads. Use a solder with a melting point of 217°C to 220°C, and avoid applying excessive heat or pressure to the component.
  • The DG401DY-T1-E3 has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Yes, the DG401DY-T1-E3 is suitable for high-reliability and automotive applications, as it meets the requirements of AEC-Q101 and is manufactured in accordance with IATF 16949:2016 standards.
  • To prevent electrostatic discharge (ESD) damage, handle the DG401DY-T1-E3 with an ESD wrist strap or mat, and ensure that the workspace and equipment are ESD-protected. Avoid touching the component pins or handling the component in a way that could generate static electricity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG401DY-T1-E3 Overview

Use the download button to access the DG401DY-T1-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG401, or try a keyword search, such as Multiplexers or Switches
