DG401DYZ-T - Renesas Electronics

Description: The DG401 and DG403 monolithic CMOS analog switches have TTL and CMOS compatible digital inputs. These switches feature low analog ON resistance (

Download DG401DYZ-T Model

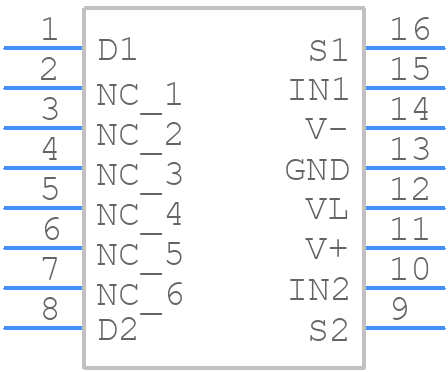

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG401DYZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.15 (JEDEC MS-012-AC ISSUE C) 16 LEAD NARROW BODY SMALL OUTLINE
click to zoom
3D Models
DG401DYZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M16.15 (JEDEC MS-012-AC ISSUE C) 16 LEAD NARROW BODY SMALL OUTLINE
click to zoom

DG401DYZ-T Details

  • Manufacturer Part Number:

    DG401DYZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM 5V TO 34V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG401DYZ-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DG401DYZ-T is 1.65V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.5V to 6.5V for short periods, but prolonged exposure to voltages outside the recommended range may affect its performance and lifespan.
  • To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down procedures outlined in the datasheet. This includes ramping up the power supply voltage slowly (typically within 10ms) and ensuring that the voltage reaches the minimum operating voltage before enabling the device. Similarly, during power-down, the voltage should be ramped down slowly to prevent any unwanted behavior.
  • The maximum allowable current for the DG401DYZ-T is dependent on the operating conditions and the specific package type. According to the datasheet, the maximum current rating for the DG401DYZ-T is 100mA. However, it's essential to consider the thermal and power dissipation limitations of the device to ensure reliable operation.
  • The DG401DYZ-T has built-in ESD protection, but it's still crucial to follow proper handling and storage procedures to prevent damage. This includes using anti-static wrist straps, mats, and bags, as well as avoiding direct contact with the device's pins. Additionally, it's recommended to use ESD-protected workstations and equipment to minimize the risk of ESD damage.
  • The DG401DYZ-T has a maximum junction temperature (Tj) rating of 150°C. To ensure reliable operation, it's essential to consider the thermal design and layout of the PCB, including the use of thermal vias, heat sinks, and thermal interfaces. The device's power dissipation should also be calculated and managed to prevent overheating.
