The recommended PCB footprint for the DG403DJ-E3 is a 4-pad SOT23 package with a 1.5mm x 1.5mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from the manufacturer's website.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid overheating or applying excessive force, which can damage the device.
The DG403DJ-E3 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
The DG403DJ-E3 is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing and qualification. Consult with Vishay Intertechnologies or a qualified reliability engineer to determine the device's suitability for such applications.
The DG403DJ-E3 is an ESD-sensitive device. To prevent damage, handle the device with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that the workspace and tools are grounded, and avoid touching the device's pins or leads.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DG403DJ-E3 Overview

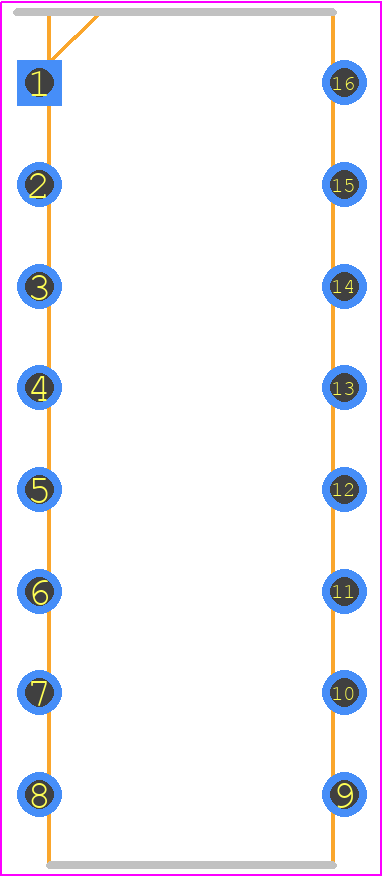

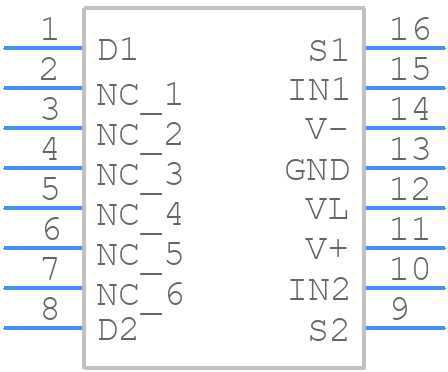

Use the download button to access the DG403DJ-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG403,
or try a keyword search, such as Multiplexers or Switches
