DG403DVZ-T - Renesas Electronics

Description: The DG401 and DG403 monolithic CMOS analog switches have TTL and CMOS compatible digital inputs. These switches feature low analog ON resistance (

Download DG403DVZ-T Model

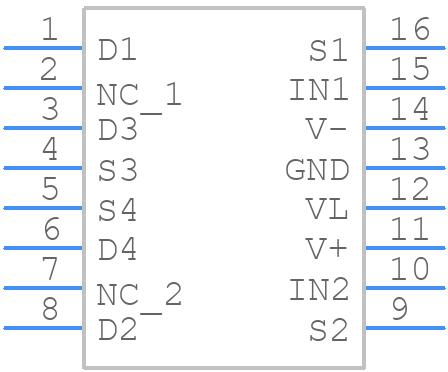

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG403DVZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.173
click to zoom
3D Models
DG403DVZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M16.173
click to zoom

DG403DVZ-T Details

  • Manufacturer Part Number:

    DG403DVZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM 5V TO 34V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DG403DVZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG403DVZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. Renesas provides a recommended PCB layout in their application notes and evaluation boards.
  • To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified thermal limits. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
  • Using a lower voltage supply than recommended may result in reduced performance, increased power consumption, or even device malfunction. Using a higher voltage supply than recommended can lead to overheating, reduced lifespan, or even device failure. It's essential to operate the device within its specified voltage range for optimal performance and reliability.
  • To troubleshoot ADC issues, start by verifying the ADC clock frequency, ensuring it's within the specified range. Check the analog input signal quality, amplitude, and frequency. Verify the ADC configuration and settings, and ensure proper grounding and shielding. If issues persist, consult Renesas' application notes and technical support resources.
  • When using the DG403DVZ-T in a high-reliability or safety-critical application, consider implementing redundant systems, error detection and correction mechanisms, and fault-tolerant design practices. Ensure compliance with relevant industry standards and regulations, and consult with Renesas' technical support and application engineers for guidance on specific requirements.
