DG403DYZ-T - Renesas Electronics

Description: The DG401 and DG403 monolithic CMOS analog switches have TTL and CMOS compatible digital inputs. These switches feature low analog ON resistance (

Download DG403DYZ-T Model

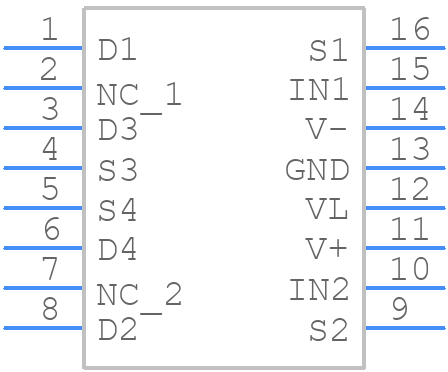

Schematic
