The recommended land pattern for the DG4052EEQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides detailed guidelines for PCB layout and assembly.
To ensure reliability in high-temperature applications, it is essential to follow the recommended derating guidelines for the DG4052EEQ-T1-GE3, as outlined in the datasheet. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
The DG4052EEQ-T1-GE3 is a sensitive electronic component and requires proper ESD protection and handling precautions. Vishay Intertechnologies recommends following the ESD Association's standard for ESD control, ANSI/ESD S20.20, to prevent damage during handling and assembly.
While the DG4052EEQ-T1-GE3 is primarily designed for analog switch applications, it can be used in high-frequency applications up to 100 MHz. However, it is essential to consider the component's frequency response, impedance, and parasitic effects to ensure optimal performance.
To maintain the component's reliability and performance, it is recommended to store the DG4052EEQ-T1-GE3 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical contacts.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG4052EEQ-T1-GE3 Overview

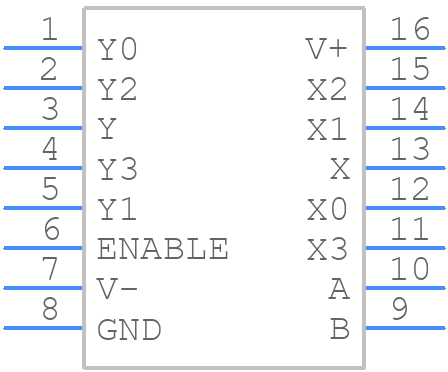

Use the download button to access the DG4052EEQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG405,
or try a keyword search, such as Multiplexers or Switches
