Description:The DG406 and DG407 monolithic CMOS analog multiplexers are drop-in replacements for the popular DG506A and DG507A series devices. They each include an array of sixteen analog switches, a TTL and CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds, and an ENABLE input for device selection when several multiplexers are present. These multiplexers feature lower signal ON-resistance (
ALSO OPERATE WITH 12V NOMINAL SINGLE SUPPLY AND 12V ANALOG INPUT VOLTAGE
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e3
Length:
17.9 mm
Moisture Sensitivity Level:
3
Neg Supply Voltage-Nom (Vsup):
-15 V
Normal Position:
NO
Number of Channels:
16
Number of Functions:
1
Number of Terminals:
28
Off-state Isolation-Nom:
69 dB
On-state Resistance-Max (Ron):
100 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
2.65 mm
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
150 ns
Switch-on Time-Max:
200 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
DG406DYZ-T Frequently Asked Questions (FAQs)
A good PCB layout for the DG406DYZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
To ensure proper power supply, use a high-quality, low-noise power supply with a voltage regulator to regulate the input voltage. Also, make sure to decouple the power supply lines with capacitors to reduce noise and ripple.
The recommended operating temperature range for the DG406DYZ-T is -40°C to 125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's recommended to operate within a narrower range (e.g., 0°C to 85°C) for optimal performance.
To handle ESD protection, use ESD-sensitive handling procedures when handling the device, and ensure that the PCB design includes ESD protection diodes or other protection mechanisms to prevent damage from electrostatic discharge.
The recommended clock frequency for the DG406DYZ-T is up to 100 MHz. However, the actual clock frequency may vary depending on the specific application and system requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG406DYZ-T Overview

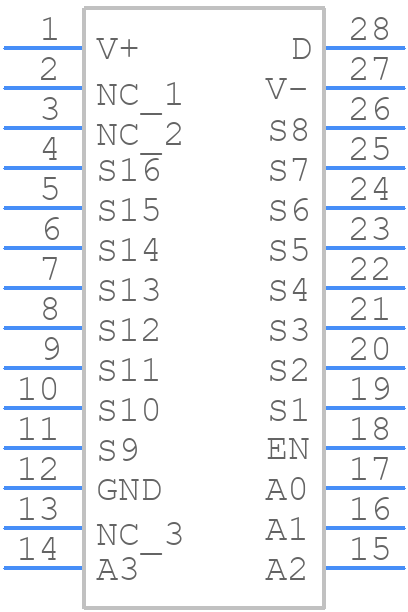

Use the download button to access the DG406DYZ-T schematic symbol, PCB footprint, and 3D model.
