DG406EWI+T - Analog Devices

Description: Improved, 16-Channel/Dual 8-Channel, CMOS Analog Multiplexers

Download DG406EWI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

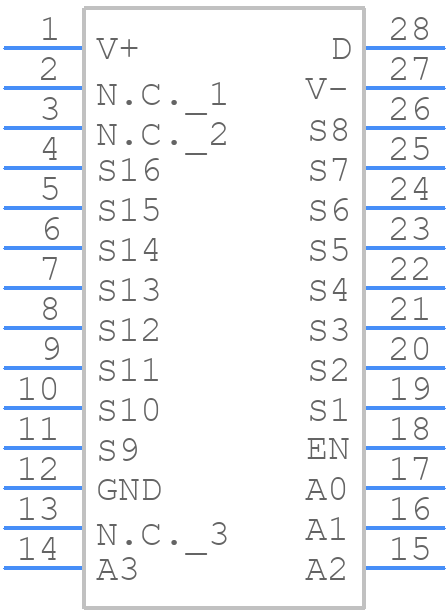

DG406EWI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DG406EWI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W28+6
click to zoom
3D Models
DG406EWI+T - Analog Devices - 3D model - Small Outline Packages - W28+6
click to zoom

DG406EWI+T Details

  • Manufacturer Part Number:

    DG406EWI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    SOP, SOP28,.4

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-01-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    69 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DG406EWI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG406EWI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for decoupling and to keep the signal traces short and away from noise sources.
  • The DG406EWI+T requires a single 3.3V or 5V power supply. It's recommended to use a low-noise power supply and to ensure that the power supply is stable before applying signals to the device. The power sequencing requirements are not critical, but it's recommended to power up the device before applying signals to the inputs.
  • The maximum frequency of operation for the DG406EWI+T is 100 MHz. Operating the device at higher frequencies may affect its performance, including increased power consumption, reduced signal integrity, and potential oscillations. It's recommended to operate the device within the specified frequency range for optimal performance.
  • The DG406EWI+T has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermally conductive pad, and to keep the device away from heat sources. The device's thermal limitations include a maximum power dissipation of 500 mW and a thermal resistance of 45°C/W.
  • The DG406EWI+T has built-in ESD protection diodes on all pins, which can withstand up to 2 kV of ESD voltage. To prevent latch-up, it's recommended to use a series resistor on the input pins and to ensure that the device is powered up and down slowly to prevent voltage spikes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG406EWI+T Overview

Use the download button to access the DG406EWI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG406, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
