DG408CY+ - Analog Devices

Description: Analogue Multiplexer Single 8:1

Download DG408CY+ Model

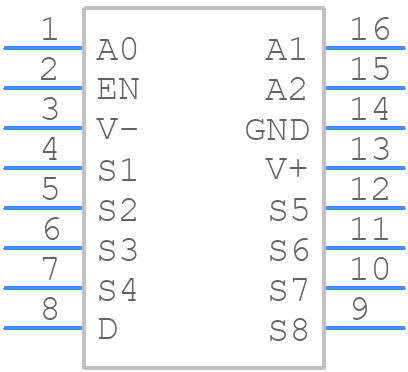

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG408CY+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
DG408CY+ - Analog Devices  - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

DG408CY+ Details

  • Manufacturer Part Number:

    DG408CY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    300 ns

  • Switch-on Time-Max:

    225 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG408CY+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the logic inputs. This ensures proper device operation and prevents latch-up.
  • To ensure proper biasing, connect VDD to a positive voltage supply (e.g., +5V), VSS to a negative voltage supply (e.g., -5V), and the analog signal to the switch terminals. The switch will operate correctly when the control voltage (VCTL) is between VDD and VSS.
  • The maximum voltage that can be applied to the analog signal pins is the absolute maximum rating of VDD + 0.3V or VSS - 0.3V, whichever is less. Exceeding this voltage may damage the device.
  • To minimize charge injection, use a low-impedance source, keep the analog signal path as short as possible, and use a shielded cable or PCB layout to reduce capacitive coupling. Additionally, consider using a buffer amplifier or a low-input-bias-current op-amp to further reduce the effect of charge injection.
  • To minimize parasitic inductance and capacitance, use a symmetrical layout, keep the analog signal paths short and direct, and avoid running digital signals near the analog signal paths. Use a solid ground plane and a separate analog ground plane to reduce noise and interference.
