DG411HSDN-T1-E4 - Vishay

Description: Precision Monolithic Quad SPST CMOS Analog Switches

Download DG411HSDN-T1-E4 Model

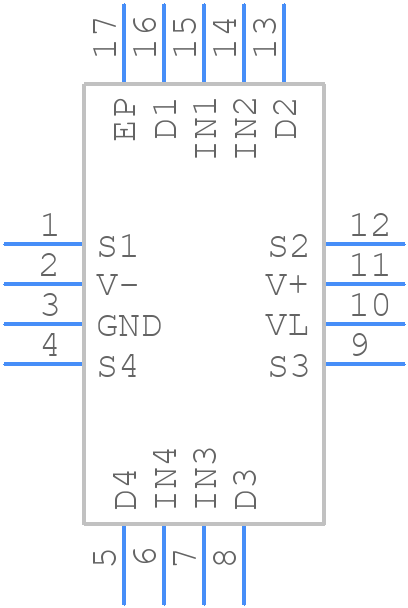

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG411HSDN-T1-E4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L--
click to zoom
3D Models
DG411HSDN-T1-E4 - Vishay  - 3D model - Quad Flat No-Lead - QFN 4x4-16L--
click to zoom

DG411HSDN-T1-E4 Details

  • Manufacturer Part Number:

    DG411HSDN-T1-E4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.48

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    91 dB

  • On-state Resistance-Max (Ron):

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    90 ns

  • Switch-on Time-Max:

    116 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

DG411HSDN-T1-E4 Frequently Asked Questions (FAQs)

  • Vishay provides a recommended PCB layout and land pattern in their application note AN81142, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize parasitic inductance.
  • To handle the high voltage rating of the DG411HSDN-T1-E4, ensure that your PCB design and component selection can withstand the maximum voltage rating. Use proper clearance and creepage distances, and consider adding voltage-dependent resistors or capacitors to protect against overvoltage conditions.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves for voltage and current handling at higher temperatures. Consult the datasheet and application notes for more information on thermal management and derating.
  • Yes, the DG411HSDN-T1-E4 is suitable for high-frequency switching applications. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that your design can handle the resulting electromagnetic interference (EMI).
  • To ensure reliability and longevity, follow proper handling and storage procedures, and avoid exposing the device to mechanical stress, moisture, or extreme temperatures. Implement proper thermal management, and consider using protective components, such as TVS diodes, to prevent overvoltage conditions.
