DG412DY - Vishay

Description: Precision Monolithic Quad SPST CMOS Analog Switches

Download DG412DY Model

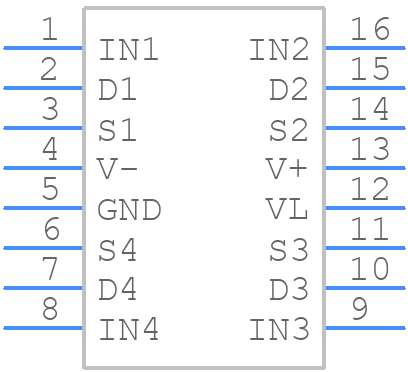

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG412DY - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - M16.15
click to zoom
3D Models
DG412DY - Vishay  - 3D model - Small Outline Packages - M16.15
click to zoom

DG412DY Details

  • Manufacturer Part Number:

    DG412DY

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    9.9 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    220 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

DG412DY Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the DG412DY is -40°C to 125°C.
  • The DG412DY has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, to prevent damage during handling and assembly.
  • The maximum allowable power dissipation for the DG412DY is 250 mW. Exceeding this limit may cause the device to overheat and potentially fail.
  • Yes, the DG412DY is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the circuit.
  • To ensure the reliability of the DG412DY, follow Vishay's recommended assembly and soldering guidelines, and consider using a conformal coating to protect the device from environmental factors.
