DG412FEUE+ - Analog Devices

Description: PACKAGE-16TSSOP

Download DG412FEUE+ Model

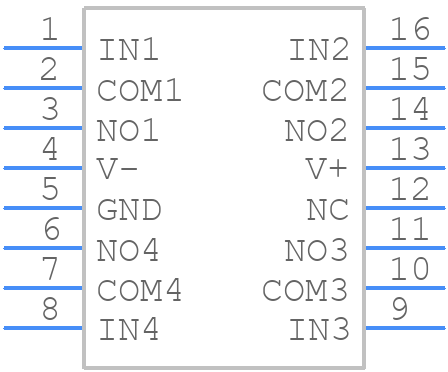

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG412FEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP*
click to zoom
3D Models
DG412FEUE+ - Analog Devices  - 3D model - Small Outline Packages - TSSOP*
click to zoom

DG412FEUE+ Details

  • Manufacturer Part Number:

    DG412FEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DG412FEUE+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the logic inputs. This ensures proper device operation and prevents latch-up.
  • To ensure proper biasing, connect VDD to a positive voltage supply (e.g., 5V), VSS to a negative voltage supply (e.g., -5V), and the analog signal to the switch terminals. The switch will operate correctly when the control voltage (VCTL) is within the specified range.
  • The DG412FEUE+ can operate up to 100 MHz, but the actual frequency limit depends on the specific application, signal amplitude, and load conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific use case.
  • To minimize power consumption, ensure that the control voltage (VCTL) is within the specified range, and the switch is operated in the 'off' state when not in use. Additionally, consider using a lower supply voltage (VDD) if possible, as this will reduce power consumption.
  • To minimize signal distortion and noise, use a symmetrical layout, keep the signal paths short, and avoid crossing signal lines. Use a ground plane to reduce electromagnetic interference (EMI) and ensure that the analog signal lines are well-separated from digital lines. Consult the datasheet and application notes for more detailed layout and routing guidelines.
