DG413DVZ - Renesas Electronics

Description: The DG411 series monolithic CMOS analog switches are drop-in replacements for the popular DG211 and DG212 series devices. They include four independent single pole throw (SPST) analog switches, and TTL and CMOS compatible digital inputs. These switches feature lower analog ON-resistance (

Download DG413DVZ Model

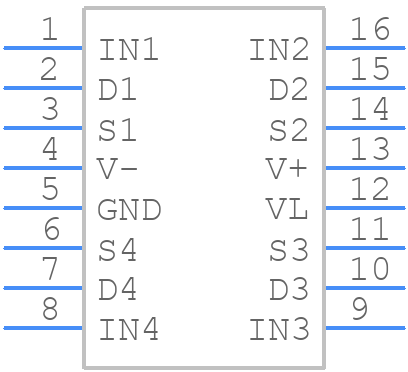

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG413DVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.173_
click to zoom
3D Models
DG413DVZ - Renesas Electronics  - 3D model - Small Outline Packages - M16.173_
click to zoom

DG413DVZ Details

  • Manufacturer Part Number:

    DG413DVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    220 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DG413DVZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG413DVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a shielded enclosure and minimizing trace lengths can help reduce EMI and noise.
  • To ensure the DG413DVZ operates within its specified temperature range, provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation.
  • The recommended power-up sequence for the DG413DVZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures proper device initialization and prevents latch-up or other issues.
  • To avoid signal distortion or clipping, ensure the analog input voltage to the DG413DVZ is within the specified range (typically 0V to VCC). Use voltage dividers, attenuators, or amplifiers as needed to condition the input signal and prevent overvoltage or undervoltage conditions.
  • When using the DG413DVZ in a high-reliability or safety-critical application, consider implementing redundant circuits, error detection and correction mechanisms, and fault-tolerant design principles to ensure the device's failure does not compromise system safety or reliability.
