The recommended PCB footprint for the DG413HSDN-T1-E4 is a standard SOT23-6 package with a 1.8mm x 1.4mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
To ensure proper biasing, connect the VCC pin to a stable 1.8V to 5.5V power supply, and the GND pin to a solid ground plane. The input pins (IN+ and IN-) should be biased to a voltage within the specified common-mode range (VCM) for the desired operation.
The maximum allowable power dissipation for the DG413HSDN-T1-E4 is 500mW. Exceeding this limit may cause the device to overheat, leading to reduced performance or even damage.
The DG413HSDN-T1-E4 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal resistance when operating in high-temperature environments to avoid overheating.
The DG413HSDN-T1-E4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap, mat, or workstation, and storing the device in an anti-static package.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG413HSDN-T1-E4 Overview

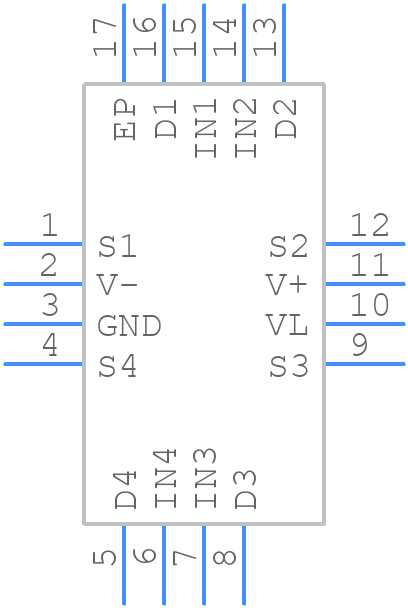

Use the download button to access the DG413HSDN-T1-E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG413,
or try a keyword search, such as Multiplexers or Switches
