DG441BDY-T1-E3 - Vishay

Description: Analog Switch ICs RECOMMENDED ALT 781-DG441BDY-T1

Download DG441BDY-T1-E3 Model

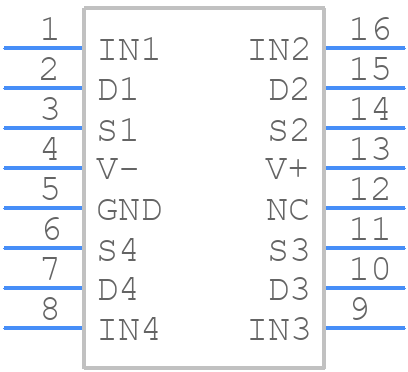

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG441BDY-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow SOIC
click to zoom
3D Models
DG441BDY-T1-E3 - Vishay  - 3D model - Small Outline Packages - 16-Pin Narrow SOIC
click to zoom

DG441BDY-T1-E3 Details

  • Manufacturer Part Number:

    DG441BDY-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.38

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    220 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG441BDY-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG441BDY-T1-E3 is a standard SO-8 package with a minimum pad size of 1.5 mm x 1.5 mm and a maximum pad size of 2.5 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • To ensure reliable operation of the DG441BDY-T1-E3 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The maximum allowable voltage on the control pins of the DG441BDY-T1-E3 is 5.5 V, which is the maximum rating for the logic input voltage. Exceeding this voltage may cause damage to the device.
  • Yes, the DG441BDY-T1-E3 can be used in switching applications with high-frequency signals, but it is essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the signal frequencies are within the device's specified bandwidth. Additionally, proper PCB layout and decoupling techniques should be employed to minimize signal reflections and ringing.
  • The appropriate pull-up resistor value for the DG441BDY-T1-E3 depends on the specific application and the required rise time of the signal. A general guideline is to use a pull-up resistor value between 1 kΩ and 10 kΩ. However, it is recommended to consult the datasheet and perform simulations or experiments to determine the optimal pull-up resistor value for the specific application.
