Description:The DG441 and DG442 monolithic CMOS analog switches are drop-in replacements for the popular DG201A and DG202 series devices. They include four independent single pole single throw (SPST) analog switches, TTL and CMOS compatible digital inputs, and a voltage reference for logic thresholds. These switches feature lower analog ON resistance (
A good PCB layout for the DG442DYZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops to reduce noise and EMI. It's also recommended to place the device close to the power supply and use decoupling capacitors to filter out noise.
The DG442DYZ requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is powered up and down slowly to prevent latch-up. The power sequencing requirements are critical, so ensure that the analog power (VCC) is powered up before the digital power (VDD).
The DG442DYZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking airflow around the device, and ensure that the PCB is designed to dissipate heat efficiently.
The DG442DYZ has built-in ESD protection, but it's still important to handle the device by the body or anti-static wrist strap to prevent damage. Use an ESD-safe workstation and ensure that all tools and equipment are grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
In high-reliability or safety-critical applications, ensure that the DG442DYZ is used within its recommended operating conditions and that the device is properly derated. Consider using redundant systems or fail-safe designs to mitigate the risk of device failure. Also, ensure that the device is properly tested and validated for the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG442DYZ Overview

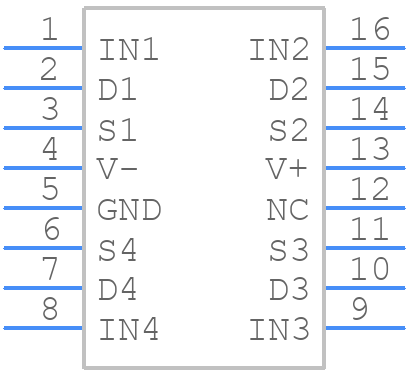

Use the download button to access the DG442DYZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG442,
or try a keyword search, such as Multiplexers or Switches
